Tiny Micro Actuators

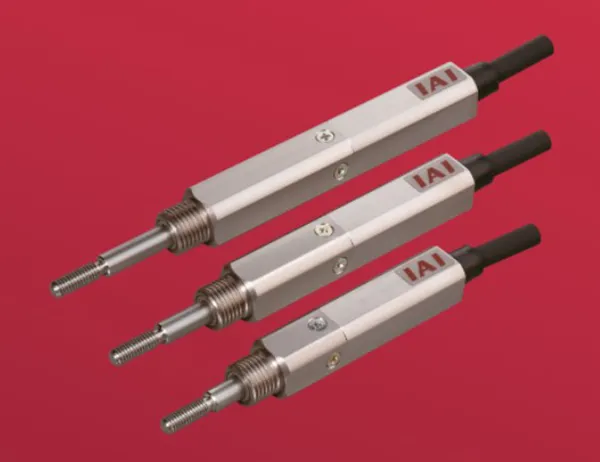

Micro Cylinder with only 14 mm Cross-section
The ultra-compact RCD micro cylinder is a rod type with a length of only 52 to 72 mm and a width of only 12 mm. The motor-driven micro cylinder is designed for applications with low load and power requirements. It can be used for short strokes, press mounting, lifting and lowering and many other applications.
The micro linear cylinder with 24 VDC miniature motor for a maximum payload of 0.7 kg is available for stroke lengths of 10, 20 and 30 mm. The small 2.5 W motor has a rated thrust of 4.2 N and a speed of up to 300 mm/s at an acceleration of up to 9.81 m/s.
Precision lead screw
The use of a precision lead screw (Ø 3 mm, lead 2 mm) facilitates linear movements with a repeatability of ± 0.05 mm with uni-directional useful travel.
The combination of brushless 2.5 W permanent magnet motor, high-resolution encoder (440 pulses/revolution) and an ultra-compact frame guarantees maximum precision and is ideally suited for demanding positioning tasks e.g. for optical systems, glass fibre technology, or as micro-adjustment drive in the medical technology field.
High-speed performance
The small 2.5 W motor provides a rated thrust of 4.2 N, a maximum load of 0.7 kg and a speed of up to 300 mm/s at an acceleration of up to 9.81 m/s².
Its high-speed performance with maximum acceleration/deceleration of 1 G is highly effective in reducing cycle time in a variety of systems.
3-point positioning and easy acceleration rate adjustments
The Micro Cylinder RCD easily achieves 3-point positioning and acceleration/deceleration rate adjustments, which are difficult to achieve using air cylinders.
Push-motion operation similar to that available with air cylinders is also possible, and the force exerted during a push-motion operation is adjustable.
Suitable RCD micro gripper with servo drive
The 2-finger gripper has a total gripping force of 10 N with an overall height of only 22 mm. The maximum opening and closing speed is 67 mm/sec with a position repeatability of +/- 0.05 mm.
The small 2-finger microgripper is used wherever filigree products and materials are to be picked up and moved.
