Grade 8
Fulfills requirements in: EN 1677:2008, ISO 8539:2009, ASTM A952/A952M, AS 3776:2015 and SANS 1595:2003
Safety factor 4:1
All dimensions in mm

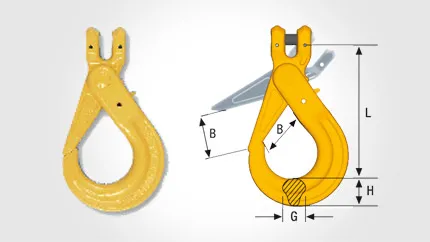

0.0% No file to download. DETAILED INFORMATION CAD Part no Code For chain size WLL t L B G H Weight kgs
Z297222 BKG-7/8-8 7, 8 2.0 120 37 17 26 0.861
Z295929 BKG-10-8 10 3.2 143 45 21 30 1.456
Z291527 BKG-13-8 13 5.4 179 55 30 39 3.056
Z291624 BKG-16-8 16 8.2 217 62 37 48 5.556
