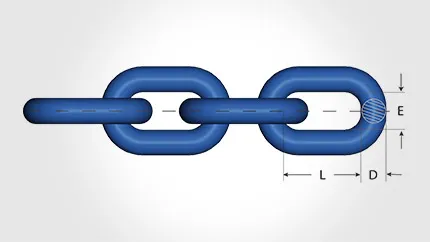

Chain KLA GrabiQ Grade 10 (200)

Short link - KLA

Heat treatment
Quenched and tempered.
Note! For chain grade 10 (200) the maximum in service temperature is 200°C.
Surface treatment
Painted blue
Marking
10G

Fulfills the requirements in:
ASTM A973/A973M-07(2012)EN 818+2:2008
(WLL +25% Reduced temperature range)

Safety factor 4:1

All dimensions in mm

0.0%
No file to download.
DETAILED INFORMATION
CAD Part no Code Length m Length m/bag WLL t ØD L E Weight kgs MPF Breaking force (kN)

Z802300 KLA-6-10 (200) 1x200  1.5 6 18 8.5 0.872 36.8 58.9
 Z802337 KLA-7-10 (200) 1x200  1.95 7 21 10.0 1.14 48 77

Z802301 KLA-8-10 (200) 1x200  2.6 8 24 11.0 1.45 63 102

Z802302 KLA-10-10 (200) 1x100  4.0 10 30 14.0 2.25 98 158

Z802303 KLA-13-10 (200) 1x100  6.8 13 39 17.7 3.76 166 268

Z802304 KLA-16-10 (200) 1x100  10.3 16 48 21.9 5.64 251 402

Z802305 KLA-20-10 (200) 1x50  16.0 20 60 27.0 9.4 393 630
 Z802246 KLA 22-10 (200) 1x50  20.0 22 66 29.0 11.9 491 785
 Z802248 KLA-26-10 (200) 1x50  27.0 26 78 35.0 16.4 664 1062
 Z802440 KLA-32-10(200) 1x25  40.0 32 96 41.6 25.8 981 1610
 -
 Z801908 KLA-6-10 1x25      0.842
 Z801914 KLA-8-10 1x25      1.45
 Z801920 KLA-10-10 1x25      2.25
 Z801926 KLA-13-10 1x25      3.76
 Z801929 KLA-16-10 1x25      5.64
 -
 Z801907 KLA-6-10 L=      0.842
 Z801913 KLA-8-10 L=      1.45
 Z801919 KLA-10-10 L=      2.25
 Z801925 KLA-13-10 L=      3.76
 Z801928 KLA-16-10 L=      5.64
 Z802143 KLA-20-10 L=      9.4
 Z802169 KLA-22-10 L=      11.9
 Z802251 KLA-26-10 L=      16.4
 -
 Z801910 KLA-6-10  1     0.842
 Z801911 KLA-6-10  3     2.526
 Z801912 KLA-6-10  5     4.21
 Z801916 KLA-8-10  1     1.44
 Z801917 KLA-8-10  3     4.32
 Z801918 KLA-8-10  5     7.22
 Z801922 KLA-10-10  1     2.25
 Z801923 KLA-10-10  3     6.75
 Z801924 KLA-10-10  5     11.25
