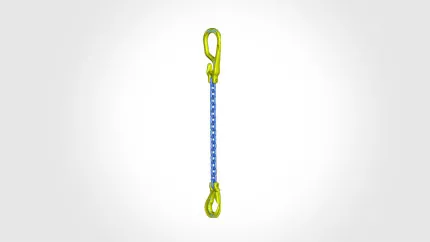

Chain sling 1-leg - MG1-EGKN GrabiQ

CAD Part no WLL t Master link Chain Hook Weight kgs/eff.length 2m Chain weight kg/m Comp.length mm
 MG1-EGKN 6 mm 1.5 MG-6-10 KLA-6-10 EGKN-6-10 2.2 1.0 231
 MG1-EGKN 8 mm 2.5 MG-8-10 KLA-8-10 EGKN-8-10 3.8 1.7 266
 MG1-EGKN 10 mm 4.0 MG-10-10 KLA-10-10 EGKN-10-10 6.6 2.7 332
 MG1-EGKN 13 mm 6.7 MG-13-10 KLA-13-10 EGKN-13-10 11.7 4.4 406
 MG1-EGKN 16 mm 10.0 MG-16-10 KLA-16-10 EGKN-16-10 18.5 6.7 481
