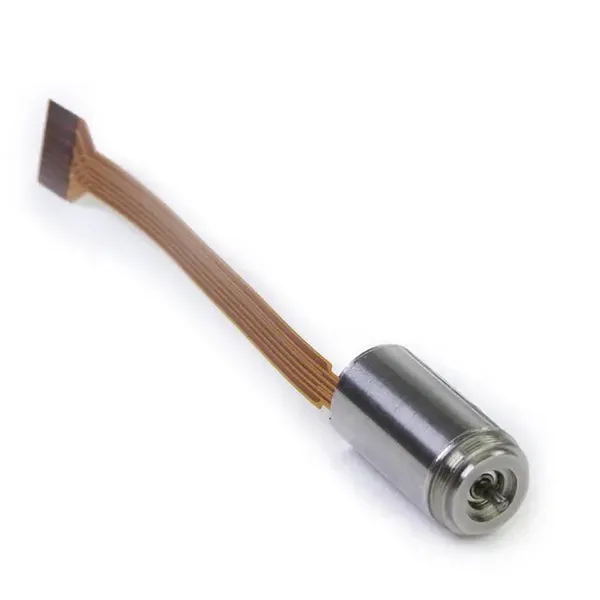

SL013CH026 Series Slotless BLDC Motors

SL013CH026 Series Slotless BLDC Motors

SL013CH026 Series Slotless BLDC Motors

Specifications:

  • 13.00 mm Frame Size
  • 1.27 A Rated Current
  • 2.58 mNm Rated Torque
  • 6 VDC Nominal Voltage
  • 25.20 mm Length

Features and Benefits:

  • Extremely quick response and high acceleration
  • Quiet Operation
  • High power density
  • Wide speed range (up to 40,000 rpm)
  • Unit Price:$127.60
  • Inventory:10 Available in 3 Weeks
  • Ships:3 Weeks
  • Part Number:SL013CH026-01

Motor Specifications

Frame Size

13.00 mm

Body Length

25.20 mm

Nominal Voltage

6 VDC

No Load Speed

24900 RPM

No Load Current

130 mA

Max Speed

40000 RPM

Rated Torque

2.58 mNm

Rated Current

1.27 A

Speed Torque Gradient

2826 RPM/mNm

Weight

0.019 kg

Motor Operating Specifications

Axial play

0.05 mm

Radial play

Preloaded

Max. force for press fits (static)

10 N

Ambient Temperature

-40.00 ° to 100.00 °C

Max winding temperature

155.00 °C

Thermal resistance (Housing-Ambient)

32.00 °C/W

Thermal resistance (Winding-Housing)

3.69 °C/W

Thermal time constant motor

250 s

Thermal time constant winding

0.58 s

Number of pole pairs

1
