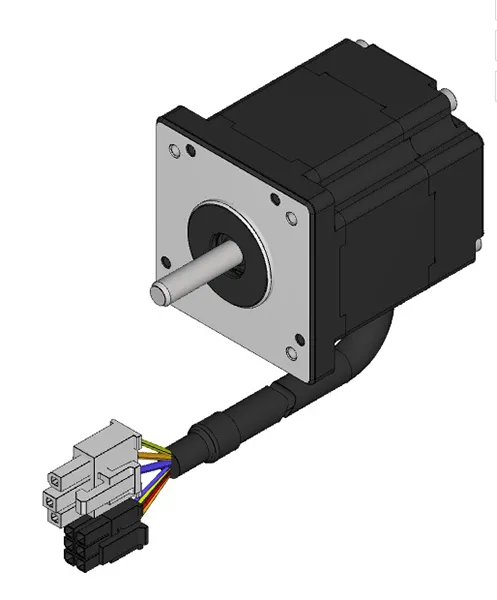

BL17 SERIES - Rapid Prototyping Motors
BLDC MOTOR
Motor Specifications
Phase
3
Frame Size
42.00 mm
NEMA Size
NEMA 17
Body Length (Dimension A)
47.00 mm
Rated Voltage
24 VDC
Rated Output Power
30 W
Rated Speed
4000 RPM
Max Speed
5000 RPM
Rated Torque
0.072 Nm
Rated Current
1.67 A
Max Torque
0.144 Nm
Resistance
1.34 ohm
Terminal Inductance
1.15 mH
Torque Constant
0.043 Nm/A
Rotor Inertia
33.8 g-cm²
Weight
0.320 kg
Electrical Time Constant
0.9 ms
Mechanical Time Constant
3 ms
