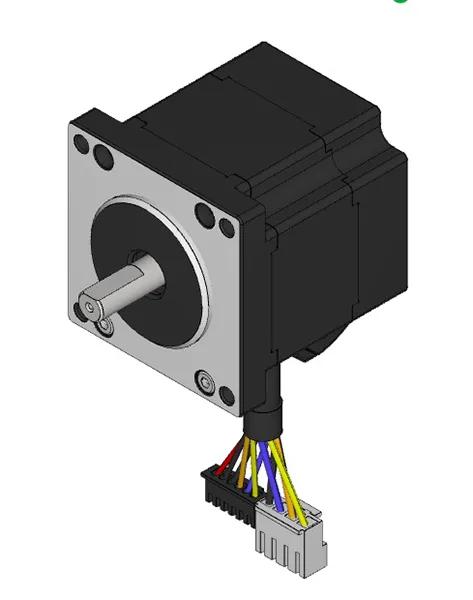

BL23 SERIES - Rapid Prototyping Motors
BLDC MOTOR
Motor Specifications
Phase
3
Frame Size
56.00 mm
NEMA Size
NEMA 23
Body Length (Dimension A)
55.50 mm
Rated Voltage
24 VDC
Rated Output Power
60 W
Rated Speed
4000 RPM
Max Speed
5000 RPM
Rated Torque
0.15 Nm
Rated Current
3.2 A
Max Torque
0.29 Nm
Resistance
0.48 ohm
Terminal Inductance
0.45 mH
Torque Constant
0.045 Nm/A
Rotor Inertia
148 g-cm²
Weight
0.640 kg
Electrical Time Constant
0.9 ms
Mechanical Time Constant
3.8 ms
