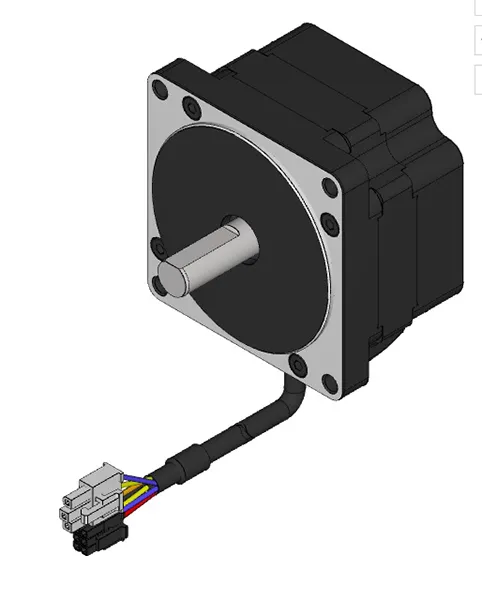

BL34 SERIES - Rapid Prototyping Motors
BLDC MOTOR
Motor Specifications
Phase
3
Frame Size
80.00 mm
NEMA Size
NEMA 34
Body Length (Dimension A)
51.00 mm
Rated Voltage
24 VDC
Rated Output Power
100 W
Rated Speed
4000 RPM
Max Speed
4500 RPM
Rated Torque
0.24 Nm
Rated Current
5 A
Max Torque
0.48 Nm
Resistance
0.18 ohm
Terminal Inductance
0.34 mH
Torque Constant
0.048 Nm/A
Rotor Inertia
380 g-cm²
Weight
0.980 kg
Electrical Time Constant
1.9 ms
Mechanical Time Constant
3.1 ms
