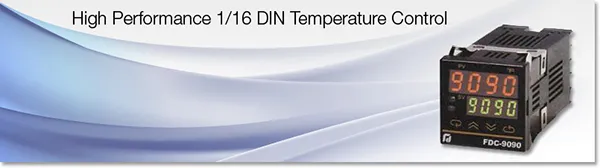

9090 Series Temperature Control

9090 Series Temperature Control

Applications

• Oven - Furnaces - Kilns
• Hot Plates / Melt Pots
• Food Service Equipment
• Environmental Chambers
• Sterilizers / Autoclaves
• Packaging Machines
• Plastics Machinery: Extrusion, Injection, Molding, etc.

Features

• Low Cost 1/16 DIN PID Control
• 3-year Warranty
• Universal Temperature Inputs
• Simple to Use & Configure
• Setpoint Logic: Static or Ramp Rate
• PID Auto Tuning

9090 Series Temperature Control

Unique Parameter Selection provides user flexibility & operator ease of use: Alarm SP, Setpoint Ramp Rate & PV Offset can be configured to be displayed in a variety of sequences when the scroll key is depressed.

Specification Review

• Power Input:
• 90-264VAC
• 20-32VAC optional
• Input sample rate - 3 scans/second
• Input: Universal thermocouple & RTD
• Control Output #1: PID or on/off control outputs:
• relay 3A/240 VAC resistive [spdt]
• ssr driver - 24VDC/20mA
• 4-20/0-20mA into 500 ohms maximum
• 0-10VDC minimum impendence 500K ohms
• Alarm Outputs - all 2A/240VAC resistive
• 9090: One Form A relay [spst
• Security:
• Three Levels of operator interface & configuration that require operator knowledge to access.
• SEL Parameters can be configured for full access [unlocked] or View only [locked].
• Nema-4x / IP65:
• Model 9090 - Not Available [see DIN Accessories for external splash guards.]
