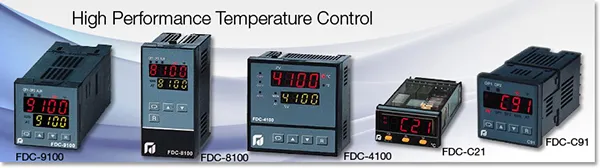

100 and C Series High Performance Single Loop Controls

100 and C Series High Performance Single Loop Controls

Applications

• Oven - Furnaces - Kilns
• Hot Plates / Melt Pots
• Food Service Equipment
• Environmental Chambers
• Sterilizers / Autoclaves
• Packaging Machines
• Plastics Machinery: Extrusion,        Injection, Molding, etc.

Features

• Low Cost High Performance PID Control
• 3-year Warranty
• Universal Temperature Input / 18 Bit A-D
• Simple to Use & Configure
• SEL configurable prompt sequence
• PC Configurable
• PID Fuzzy Assisted Auto Tuning
• Setpoint Logic: Static or Ramp Rate
• up to 3 control outputs & optionally        Retransmission of SP/ PV or       Serial Modbus RS232/485
• Serial Communications (option)

100 and C Series High Performance Temperature Controls

Note the C Series does not offer latching alarms or Auto/Manual features include configurable display decimal point, hysteresis for control and alarm outputs, Output Limiting, PV Shift [bias], Deadband between Heat/Cool outputs and more.

Easy & intuitive access Setpoints for Output 2 & 3 if so equipped.

Manual Loading Station: Instead of being used as a PID control the 100 & C Series may be configured as a Manual Loading Station to provide easy method to manually control a linear output. The single display C Series are the most popular models for Manual Stations.
