New C-Series High Performance PID Process Control

New C-Series High Performance PID Process Control

Applications

• Oven - Furnaces - Kilns
• Hot Plates / Melt Pots
• Food Service Equipment
• Environmental Chambers
• Sterilizers / Autoclaves
• Packaging Machines
• Plastics Machinery: Extrusion,        Injection, Molding, etc.

Features

• Multi-Color Display
• Low Cost High Performance PID Control
• 3-year Warranty
• Universal Input T/C-RTD, VDC, mA, mV
• CT inputs (2) with Heater Break/Short Alarm
• Simple to Use & Configure
• SEL configurable prompt sequence
• Alarms configurable with Time Delay "active"
• Soft Start: Power up configurable PID % Out       on time or passing through a PV threshold
• Event Inputs(EI):                                                     - 1 EI C22-R22 and 2 EIC62      - up to 6 EI on C82/83 and C42
• PID Fuzzy Assisted Auto Tuning
• Setpoint Logic: Static or Ramp Rate
• Profile Ramp Soak for C82/82 & C42
• up to 4 control outputs
• PC Configurable
• Options
•  - Retransmission of SP/ PV      - Serial Modbus RS232/485      - Remote Setpoint,      - up to 6 Event and 2 CT Inputs
• One button return to User defined        default configuration

The New C-Series High Performance PID Process Control

C-Series Panel Mount Sizes

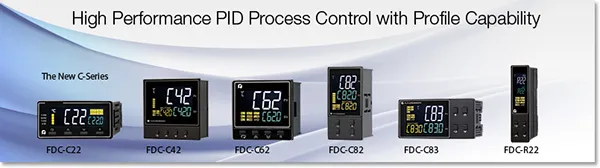

The C-Series is available in 1/32 DIN C22, 1/16 DIN C62, 1/8 DIN C82/83, 1/4 DIN C42 and R22 DIN Rail Mount. The 1/8 DIN are available as vertical and horizontal while the R22 is a DIN rail mount control perfect for high density single loop control requirements. .

Ease of Use:

The multi-color LCD display, configurable space for output annunciation, PID % output, count down timer or Profile information provide operators with an ease of use not found in this class of instruments. In addition the SEL function provides additional flexibility & operator ease of use by allowing configuring those parameters significant to the operator [up to 8] to display in sequence when the scroll key is depressed.  [P, I, D,  Shift, Cycle 1, deadband, etc., or nothing displayed].
