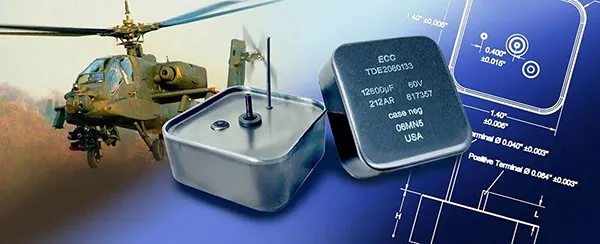

TDE series

TDE series

TDE series

Highest power density of any tantalum capacitor technology.

TDE Hybrid Capacitors utilize a sintered tantalum anode and ruthenium oxide coated cathode operating in aqueous with additive electrolyte. The components are hermetically sealed in a welded tantalum case with a glass-to-metal anode terminal seal.

The TDE series capacitors combine high capacitance and low ESR in a fully hermetic tantalum package for high reliability Defense and Aerospace applications where weight and volume are at a premium. Especially suited for high power pulse applications, with excellent heat transfer and low inductance.

  • 1.4 x 1.4 square base
  • Heights range from 0.312 – 0.75″
  • Voltages range from 6V-125V
  • Cap values range from 1,100uF – 250,000uF
  • Temperature range of -55°C to 125°C
  • Standard tolerance ±20% (±10% available upon request)
  • Stud mount options available

Electrical Specifications

Rated Voltage Range

60VDC to 110VDC

Capacitance Range

2,200uF to 25,000uF

Life (@85 C)

>2000 hours @ Rated Voltage

Mechanical Specifications

Test

Method

Condition

Remarks

Shock

MIL-STD-202 METHOD 213

G

Tested for 11ms at 50g

Vibration

MIL-STD-202 METHOD 204

MIL-STD-202 METHOD 214

D

II, Letter E

12 sweeps/axis, 20g peak

1.5 hours/axis, 19.64g peak

Moisture Resistance

MIL-STD-202 METHOD 106



6V Polarity

Solderability

To ANSI J-STD-002

Operating Temperature Range

-55ºC to +85ºC or 125ºC with voltage derating

Storage Temperature Range

-62ºC to +130ºC

Capacitor Life

  • TDE Series capacitors are rated for >2,000 hours at 85?C and rated voltage or 125?C at de-rated voltage. The effective life of a capacitor in a given application is based on the specific operating voltage and average temperature.
  • TDE Series Capacitors have an unlimited Shelf life.

Handling Guidelines

Attachment / Mounting by leads only is discouraged in applications exposed to mechanical shock or vibration. Always ensure capacitor is firmly secured to PWB, by either mounting studs, epoxy staking or both (preferred for vibration environments)

  • Provide adequate care to protect the glass to metal seal (GTMS)
  • Avoid forces on the positive terminal, lateral, axial or torque.
  • Avoid mechanical shock to the positive terminal.
  • Secure the part to PWB before soldering.

Mounting with studs

  • #2-56 CDA-752 studs are available as a standard option.
  • Use spacers (provided) to fill the gap between PWB and leaded surface of capacitor.
  • Tighten Studs to 30-40 in-oz.
  • Secure nuts (provided) with red Loctite. Do not use lock washers.

Potting / Epoxy Staking

  • We advise epoxy staking capacitor to PWB even when using studs, for maximum vibration tolerance.
  • In some applications it may be advisable to pot the cavity between the PWB and leaded surface.
  • Highest shock/vibration applications may require the capacitor to be fully potted.

Soldering

  • Rim of Capacitor is intended to mate directly to PWB. Advise using “no-clean” flux.
  • Utilize ANSI J-STD 001 Standard Through hole Soldering methods

Lead Trimming

  • Provide adequate care if leads must be trimmed.
  • Trimming the positive terminal is not recommended.
  • Lead lengths available in 1/32″ increments from 0.125″ when measured from the rim of the capacitor.
