TDB series

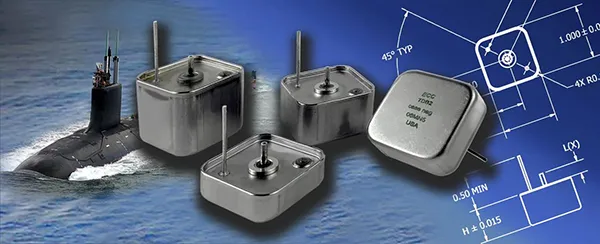

Introducing the TDB series, our newest radial form factor consisting of a 1” X 1” square footprint.
This product series delivers the same high rel rugged quality as offered in the other Evanscap product line in a compact package.
TDB series capacitors have a wide product offering range available in 5 different heights between 10-125V.
Electrical Specifications
Rated Voltage Range
10VDC to 125VDC
Capacitance Range
750uF to 150,000uF
Life (@85°C)
>2000 hours @ Rated Voltage
Mechanical Specifications
Test
Method
Condition
Remarks
Shock
MIL-STD-202 METHOD 213
G
Tested for 11ms at 50g
Vibration
MIL-STD-202 METHOD 204
MIL-STD-202 METHOD 214
D
II, Letter E
12 sweeps/axis, 20g peak
1.5 hours/axis, 19.64g peak
Moisture Resistance
MIL-STD-202 METHOD 106
6V Polarity
Solderability
To ANSI J-STD-002
Operating Temperature Range
-55ºC to +85ºC or 125ºC with voltage derating
Storage Temperature Range
-62ºC to +130ºC
Capacitor Life
Handling Guidelines
Attachment / Mounting by leads only is discouraged in applications exposed to mechanical shock orvibration. Always ensure capacitor is firmly secured to PWB, by either mounting studs, epoxy staking orboth (preferred for vibration environments)
Mounting with studs
Potting / Epoxy Staking
Soldering
Lead Trimming
