X86 Arm Boards-EMB-2238
Single Board Computers & Embedded Boards
x86 architecture has dominated the embedded industry due to its robust design and long-lifecycle support, but in recent years, more and more people have discovered that ARM-based boards and systems can hold their own in the embedded world. With some semiconductor companies sporting long-lifecycle chips and the ultra-low power consumption ARM chips are known for, embedded ARM boards have made an impression in the market. ARM-based embedded boards are the ideal solution for smaller, dedicated devices that do not need to run extensive applications. Estone Technology is proud to be a one-stop-shop for all of your industrial x86 sbc and ARM embedded systems.

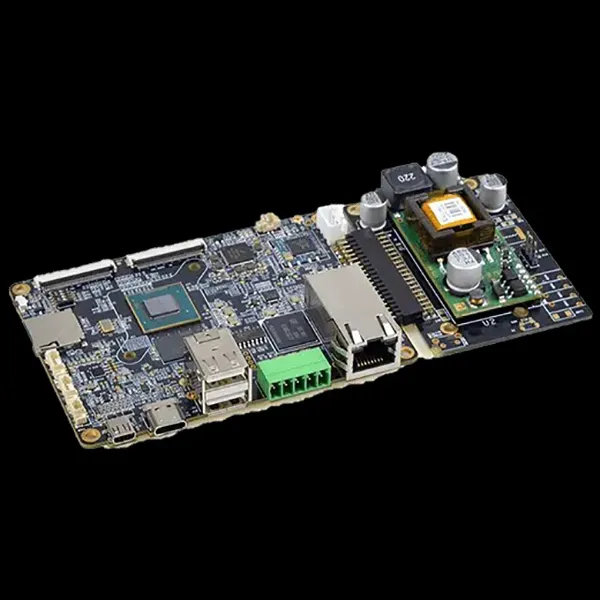

EMB-2238
NXP i.MX8M ARM Quad-core Cortex-A53 Pico-ITX Embedded Board with Dual-core DSP for Voice Control, POE, MIPI and High Performance Audio.
The EMB-2238 is a Pico-ITX (100x 72mm) industrial motherboard based on NXP i.MX8M ARM application processor. The board features a Power over Ethernet (PoE) ready Gigabit Ethernet port, dual-core hardware DSP that runs algorithms for voice control, noise suppression, and echo cancellation technology, extensive high-performance digital audio inputs/outputs and full set of I/Os including RS-232/485, and more. OS supports include Yocto built Embedded Linux, Ubuntu, Qt and Wayland, Amazon AVS (Alexa Voice Service) Device SDK, Sensory TrulyHandsfree Wake Word Engine, and Android OS.
Key Features
- NXP i.MX8M with up to four 1.5 GHz Cortex-A53 processors
- One Cortex-M4 for real time requirements
- Gigabit Ethernet with build-in POE (Power over Ethernet) option
- Smart codec with dual-core DSP for digital MICs and voice control
- MIPI CSI and DSI for LCD panel, built-in I2C touch panel support
- 20+ audio channel 32-bit @ 384KHz input and output interfaces
- Linux supports of Amazon AVS (Alexa Voice Service) Device SDK
Built for Industrial Applications
Targeted to satisfy diverse applications demanding a robust and compact computing platform in industrial environments with 10 and 15 year longevity support NXP i.MX8M application processors, integrated Cortex-M4 for real time requirements, built-in reliable communication interfaces like RS-485, RS-232 and more.
Ultra Slim Profile
The EMB-2238 i.MX8M embedded board uses Micro HDMI, and mini USB and FPC connectors to provide an ultra slim board configuration; the perfect choice for touch panel PCs, all-in-one (AIO) PCs, HMI and tablet replacement computers, and other slimline builds.
Single Point Touch Screen Connector
Integrates 4-lane MIPI DSI, power, backlight control, and touch panel interface all in one FPC connector to give developers fast, convenient, and simplified solutions for industrial and embedded touch panel PC and HMI applications.
40 Pin Digital Audio FPC Expansion
This i.MX8M embedded board provides 8-channels in and 8-channels out serial audio interface (SAI), all at 32bit 384KHz, one SPDIF Tx and Rx for applications like HDMI Audio Return Channel (ARC), high performance sound bars, amplifiers, and other Immersive audio devices.
Add-On Module for GbE
Works seamlessly with the 40-pin expansion header to add a second Ethernet port, 9-36V wide range voltage power input, light bars LED control, ambient sensor, and GPIO functions.
PoE Power Module
Provides Power over Ethernet (PoE) IEEE 802.3af or 802.3at (PoE+) standards power input for the board and LCD panel to make installing or large roll-out of POE touch panel PC and IoT devices much simpler and cheaper.
40 Pin I/O Expansion
Provides a Raspberry Pi like 40-Pin expansion header tweaked for industrial and voice control applications with PCIe, configurations of multiple GPIOs, RS-232, I2C, POE power input, and full function 8-channel digital audio (Serial Audio Interface) inputs for microphone array.
All-in-One 7″ and 10″ Panel PC
Voice control HMIs built on the EMB-2238 i.MX8M embedded ARM board platform with dual Dual digital MEMS microphones, amplified speaker, POE, or I/O expansion module to help speed up time-to-market.
