7″ In-Wall Panel PC - PPC-4607

7″ In-Wall Panel PC - PPC-4607

Intuitive Human Touch, Connected to the Cloud

Estone Technology’s various touch screen industrial panel PCs are designed for healthcare, home automation, industrial control, and more. With resistive, capacitive, and IR touch technologies, the systems implement intuitive human interfaces and feature-rich cloud base applications (Wi-Fi or built-in 3G/4G), providing entertainment, data entry, device interaction, and smart computing. Available features include an optional black box and panel options from 7” to over 50”. LCD panels are Windows, Linux, Yocto, and Android supported.

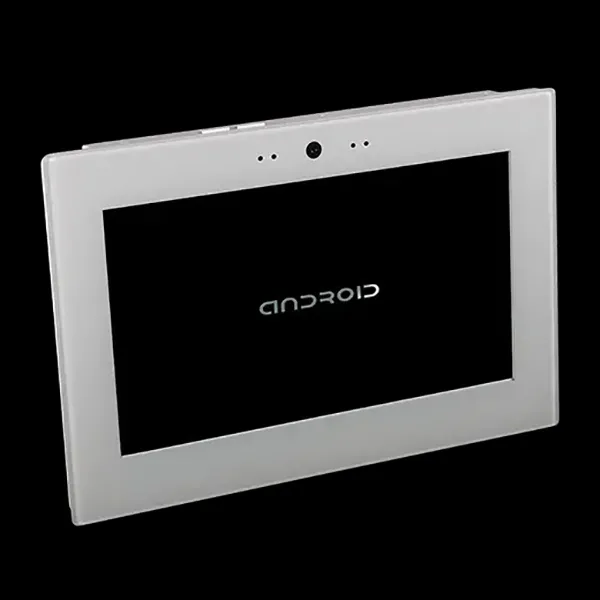

7″ In-Wall Panel PC | PPC-4607

7” Frameless In-Wall Touch Panel PC / HMI, NXP i.MX8M Mini Processor with 2mm Tempered Glass Touch Screen, PoE, Voice Control and ML Ready

The PPC-4607 is a slim table-like all-in-one Panel PC with touch screen. The system equips with NXP’s i.MX8M Mini Quad Core ARM processor with a guaranteed 10-year lifespan. In-wall mounting design allows the panel to be mounted on standard 2-gang electrical box. Alexa voice control, Google Edge TPU for ML ready and the gigabit Ethernet PoE (Power over Ethernet) option makes it perfect for home automation, building automation, HMI, control panel and interactive IoT applications.

Key Features

  • NXP i.MX8M Mini application processor with long life cycle support
  • Standard 802.3af POE Gigabit Ethernet port
  • Built-in 5MP MIPI camera and dual digital microphones
  • Smart codec with dual-core DSP supports Alexa Voice Service
  • On-board WiFi/BT, proximity, ambient light sensor and GPIO ports
  • PCIe expansion supports Google’s Edge TPU for high-performance ML
  • Support Android 9, 10, Yocto Embedded Linux, and Debian Linux

Seamless In-Wall Mounting

The PPC-4607’s innovative in-wall mounting solution provides 12V DC or POE power and easy access to touch panel applications in a permanent location on a wall as well as seamless installation in any standard 2-Gang Electrical Box.

Voice Control Ready

Dual digital microphone array and built-in smart codec with dual-core DSP that runs algorithms for voice control, omni-directional spatial, noise suppression, and acoustic echo cancellation (AEC). Linux supports Amazon AVS (Alexa Voice Service) Device SDK and Sensory TrulyHandsfree Wake Word Engine.

Built for Edge AI Applications

Targeted to satisfy diverse applications demanding a robust and compact computing POE edge AI Panel PC for IoT machine learning, embedded vision and inferencing, the PPC-4607 provides PCIe special design add-on board option with built-in Google Coral Edge TPU for hardware accelerated of deep learning framework like TensorFlow Lite.

Flexible Power Input

Provides modular gigabit Power over Ethernet (PoE) IEEE 802.3af standards power input via RJ45 Ethernet port and standard network cable. Other modules are also available with 24V AC input from HAVC system or standard 12V DC power input to make installing or large roll-out much simpler and cheaper.
