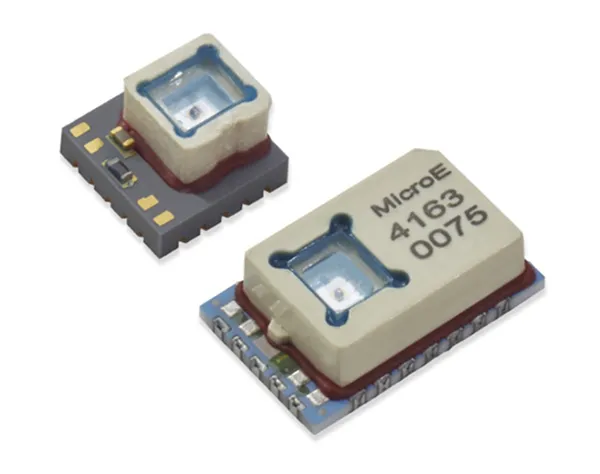

ChipEncoder Series – CE & CE300
ChipEncoder is a modular digital interface SMT kit encoder system that combines small size with high resolution. ChipEncoder models feature built-in interpolation and mount directly on your PC board, providing significant space and cost savings through design integration.
Specifications of ChipEncoder Series CE
Dimensions
6.1 x 6.1 x 3.9 mm
Interface, Digital
A quad B with index
Interface, Analog
-
Interpolation
up to 40x in sensor
Resolutions
3000 CPR to 327K CPR
Accuracy Class
up to +/- 2 arc-seconds
Max Speed
26,000 rpm
Operating Environment
Atmospheric
Specifications of ChipEncoder Series CE300
7 x 11 x 3.1 mm
Grating Compatibility
RCE
Highest Accuracy Class
+/- 2 arc-seconds
Diameters
up to 180mm
Index
Yes
Material
B240 glass
Coefficient of Thermal Expansion
9.4ppm/°C
Mounting
Hub
