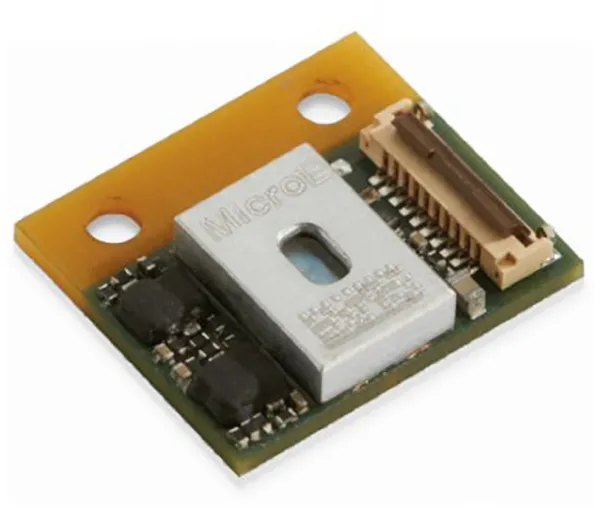

Optira Series – PI
Combining MicroE’s patented PurePrecision™ technology with state-of-the-art electronics and signal processing, the Optira delivers unprecedented performance in an incredibly small and lightweight package, providing resolution of up to 5nm with all AGC, interpolation, and signal processing performed in the sensor head.
Specifications of Optira Series PI
Dimensions
13 x 11.8 x 3.7 mm
Interface, Digital
A quad B
Interface, Analog
1 Vpp sin/cos
Interpolation
In sensor head
Resolutions
2000 CPR to 75M CPR
Accuracy Class
up to +/- 2 arc-seconds
Max Speed
TBD
Operating Environment
Atmospheric
Rotary Grating Compatibility
PIRG
Highest Accuracy Class
+/- 2 arc-seconds
Diameters
up to 108mm
Index
Yes
Material
Soda lime glass
Coefficient of Thermal Expansion
8ppm/°C
Mounting
Hub
