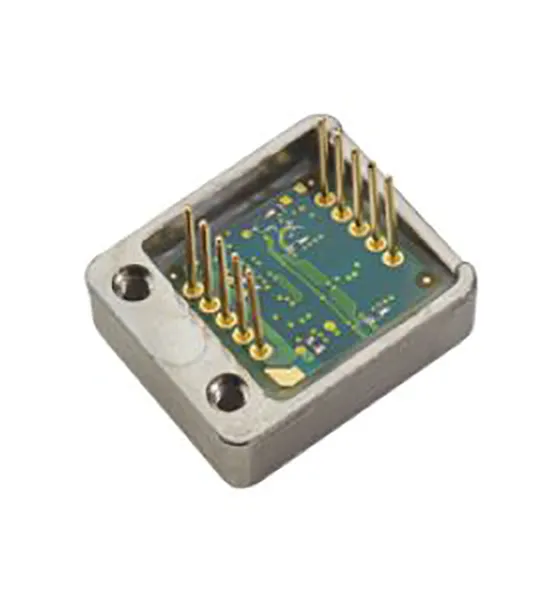

Mercury Series – M1500P
MicroE’s renowned PCB-mounted Mercury™ Encoders deliver up to 4.2 million CPR resolution in an extremely compact and light package (5.6mm installed height, 2g weight), enabling machine and instrument designers to achieve rapid accelerations and high throughput in applications where size and mass are critical.
Specifications of Mercury™ Series – M1500P
Dimensions
15.3 x 12.7 x 5.6 mm
Interface, Digital
A quad B with index
Interface, Analog
-
Interpolation
up to 40x in sensor
Resolutions
6.6K to 655K CPR
Accuracy Class
up to +/- 2 arc-seconds
Max Speed
13,000 rpm
Operating Environment
Atmospheric
Grating Compatibility
R
Highest Accuracy Class
+/- 1µm
Diameters
up to 108mm
Index
Yes
Material
Soda lime glass
Coefficient of Thermal Expansion
8ppm/°C
Mounting
Hub
