CANplus™ CP800
CANplus™ CP800

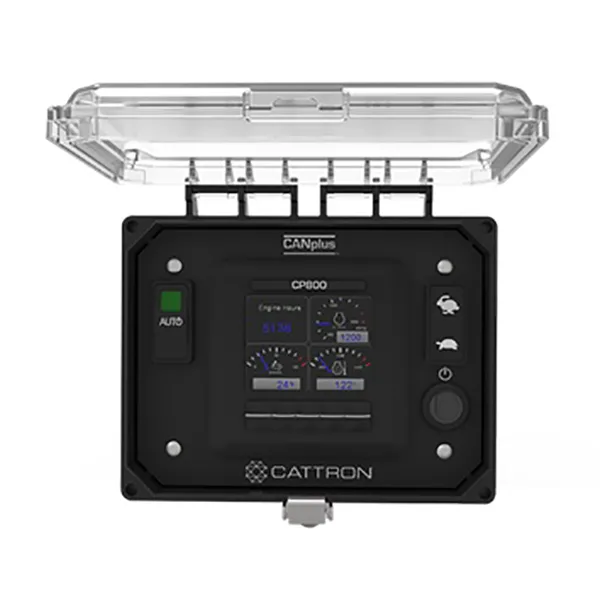

The CANplus™ CP800 is a digital engine control panel with seven inputs. It supports electronically governed engines for manual or autostart operations. It is typically used for pump control applications that only need to measure floats and discharge pressure.
HIGHLIGHTS
- 7 inputs: 4 for engine control and 3 for autostart operations
- CANplus™ Control advanced throttling capabilities
- Tier 4F and Euro Stage V compliant
- 3.5" high-resolution color display
Features
Housing
Rugged, weather-resistant housings with vibration isolation mounts
Display
Intuitive, user-friendly menus accessible via a high-resolution, color display
Configuration
Simple configuration using menus or through a simple, straightforward Windows-based configuration program
Interface
CANplus interface for engine monitoring and control, supporting all SAE J1939 messages
Inputs
Two autostart switch inputs, 4-20 mA transducer input, two fault switch inputs, two resistive sender inputs
Autothrottle Maintain Point
Configurable 4-20mA transducer target values to dynamically throttle the engine to maintain a level
Autostart
Configurable start and stop events: autostart switch inputs, 4-20 mA transducer (level, pressure, flow, etc.), 24 x 7 scheduled run, countdown-to-off timer
Autothrottle Profile
Configurable seven-stage, autoramp throttle profile: warm-up time at idle, ramp-up time to intermediate RPM, intermediate time and RPM, ramp-up time to run RPM, run RPM, ramp-down time to idle and cool-down time at idle
Outputs
Alarm, Aux for engine running, autostart or engine-at-speed
Throttle Control
Includes a momentary rabbit/turtle rocker switch
ISO Certification
Manufactured in an ISO 9001:2015 certified operation
Warranty
Two-year limited warranty
