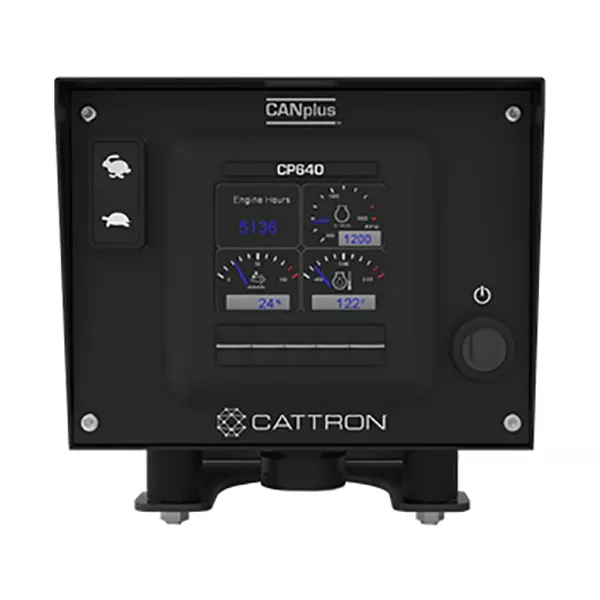

CANplus™ CP640
CANplus™ CP640
The CANplus™ CP640 is a compact, digital engine control panel with four inputs. It supports electronically governed engines for manual operations. It is typically used with manually controlled machines to measure oil pressure.
HIGHLIGHTS
- 4 inputs for engine control
- CANplus™ Control advanced throttling capabilities
- Tier 4F and Euro Stage V compliant
- 3.5" high-resolution color display
Features
Housing
Rugged, weather-resistant housings with vibration isolation mounts
Display
Intuitive, user-friendly menus accessible via a high-resolution color display
Configuration
Simple configuration using menus or through a simple, straightforward Windows-based configuration program
Inputs
Two resistive senders (supporting fuel level, oil pressure or coolant temp) and two digital inputs
Interface
CANplus interface for engine monitoring and control, supporting all SAE J1939 messages
Throttle Control
Includes a momentary rabbit/turtle rocker switch. Rotary throttle with mouse and autoramp are optional
Autothrottle Profile
Configurable seven-stage, autoramp throttle profile: warm-up time at idle, ramp-up time to intermediate RPM, intermediate time and RPM, ramp-up time to run RPM, run RPM, ramp-down time to idle and cool-down time at idle
Enclosures
Compact 8”x6” Aluflex, Standard 8”x10” Aluflex, Compact 8”x6” NEMA, Standard 8”x10” NEMA
LED Set
Optional set of LED indicators (red/yellow/blue)
Outputs
Alarm, aux, starter control, ECU control
Warranty
Two-year limited warranty
ISO Certification
Manufactured in an ISO 9001:2015 certified operation
