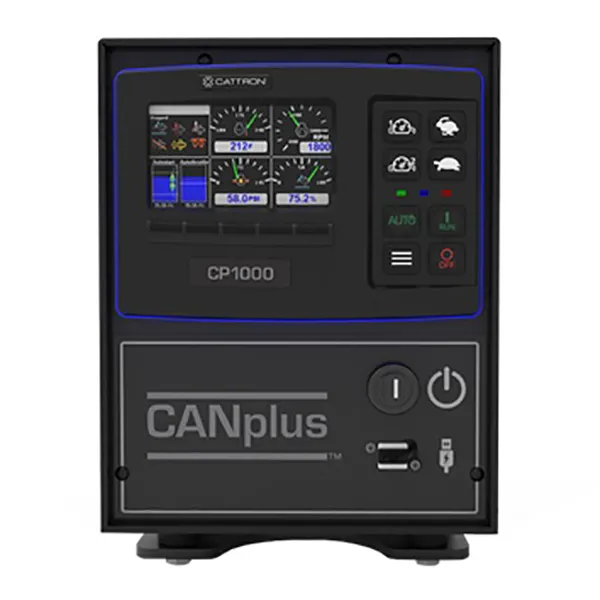

CANplus™ CP1000
CANplus™ CP1000
The CANplus™ CP1000 is a comprehensive engine control panel with 21 inputs. It supports electronically and mechanically governed engines for manual or autostart operations. It is typically used for pump control applications to measure floats, suction and vacuum pressure, discharge pressure, water level and water flow. Now available to support variable frequency drives.
HIGHLIGHTS
- 21 inputs: 5 for engine control and 16 for autostart operations
- Embedded Bluetooth® or LTE communications
- For diesel-driven and electric motor-driven engines and pumps
- CANplus™ Control advanced throttling capabilities
- Tier 4F and Euro Stage V compliant
- 4.3" high-resolution, wide-screen color display
Features
CANplus™ Control
Patent-pending advanced throttling and control features. (Dynamic Throttling, Pause at Run Speed, Throttle by Maintain Point, Controlled Off, Linear Throttling, Auto/Manual Mode Toggle, Momentary Rabbit/Turtle Keys, Autoramp, Autostart, and Autothrottle Maintain Point)
Outputs
Built in alarm, two 10A power output (starter & ECU), two isolated power outputs (20A and 10A), four 1A outputs (one for pre-heat), two 1A transducer power outputs, yellow/red fault/warning, blue LED for emissions indication, green Autostart LED, external E-Stop (Normally closed, Grounded closed)
Event Manager
Can fully control engines based on configurable criteria - eight digital inputs, six 4-20 mA analog transducer inputs, a battery-backed real-time clock or a combination of criteria
Inputs
Five display buttons, eight switch inputs, six 4-20mA transducer inputs, two fault switch inputs (oil & temp), three resistive sender inputs, two pulse meters (one can be used for Tach Alternator)
Configuration
Simple configuration using menus or through a simple, straightforward Windows-based configuration program
Interface
CANplus interface for engine monitoring and control, supporting all SAE J1939 messages
Autothrottle Maintain Point
Configurable 4-20mA transducer target values to dynamically throttle the engine to maintain a level
Autostart
Configurable start and stop events: autostart switch inputs, 4-20 mA transducer (level, pressure, flow, etc.), 24x7 schedule run, and countdown-to-off timer
Telemetry Communications
Optional Bluetooth or LTE CAT-M1 communications are available
Display
Intuitive, user-friendly menus accessible via a 43c high-resolution 4.3” WQVGA color display
Autothrottle Profile
Configurable seven-stage autothrottle profile
Warranty
Two-year limited warranty
ISO Certification
Manufactured in an ISO 9001:2015 certified operation
