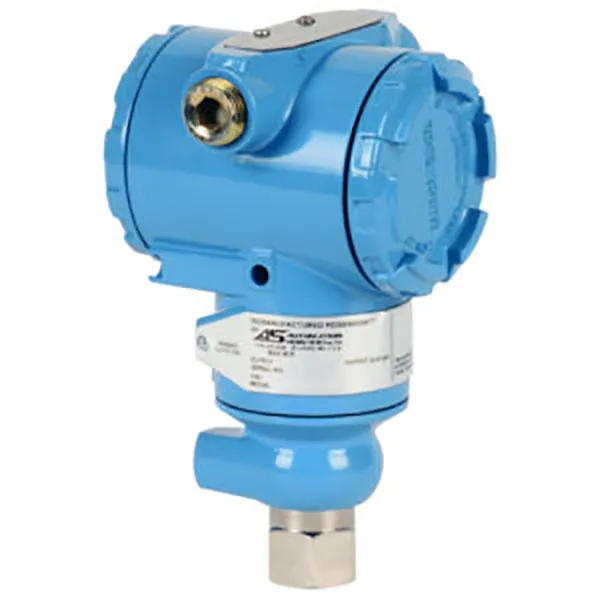

Remanufactured Rosemount 3051TG Transmitter

Remanufactured Rosemount 3051TG Transmitter

Electronic Gauge Pressure, Gauge Pressure, Pressure Measurement

Description - The 3051 Series SMART® Transmitters are offered in a variety of configurations for differential, gauge, liquid-level, flow and specific gravity measurement applications.

SPECIFICATIONS

Output

• 4-20 mA with digital signal based on HART Protocol
• Low power, 1-5 V dc with digital signal based on HART Protocol
• Low power, 0.8-3.2 V dc with digital signal based on HART Protocol, optional

Range

• 0-0.3 to 0-10,000 psig

Accuracy

• 1-4: +/-0.04% of span
• 5: +/-0.075% of span

Power

• 4-20 mA: 10.5-42.4 V dc with no load
• Low power: 6-12 V dc with no load

Materials

• Sensor Wetted Parts: SST, Hastelloy, Monel, Tantalum

Fluid

• Sensor fill fluid: Silicone, Inert (Halocarbon)

Mounting

• Coplanar and Traditional flanges
• Adapters: Cadmium and Nickel-plated CS, 316 SST
