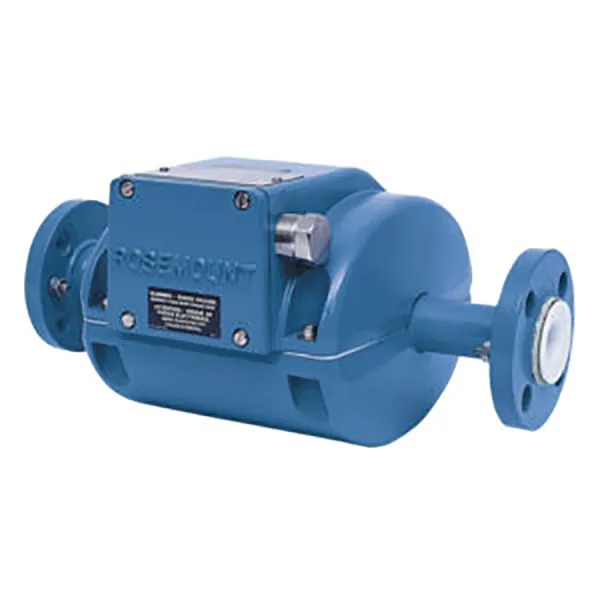

Remanufactured Rosemount 8701 Flow Meter

Remanufactured Rosemount 8701 Flow Meter

Magnetic Flowtubes, Magnetic Flow, Flow Measurement

Description - The 8700 series magnetic flow meter system, consisting of an 8701 magnetic flowtube, signal cable and an 8712C series transmitter, measures flow rate of conductive liquids, and transmits a proportional electrical signal.

SPECIFICATIONS

Range

• Upper Range Limits: 30 ft/s
• Ambient Temperature Limits: -30 to 150 F

Accuracy

• + – 0.5% of rate from 1 to 30 ft/s(0.3 to 10m/s)
• Includes combined effects of linearity, hysteresis, repeatability, and calibration uncertainty

Materials

• End Connections – Carbon steel, 304 SST
• Electrodes – 316SS, Hastelloy C, Tantalum, Titanium, PT-Ir, Alloy-20
• Lining – PTFE, Polyurethane, Tefzel, Ryton

Size

• 1/2-24 inch
