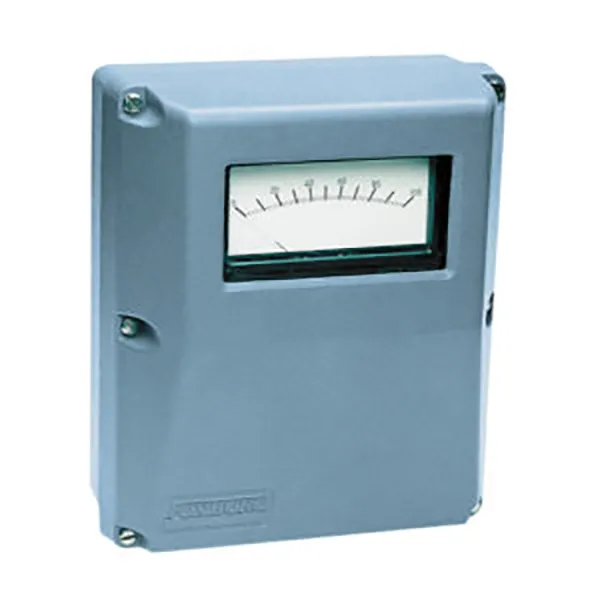

E96 Transmitter

E96 Transmitter

Magnetic Flow Transmitters, Magnetic Flow, Flow Measurement, Transducers

Description - The E96 Series Transmitter, along with the 2800 Series Magnetic Flow Meter and Signal Cable, measure flow rate of conductive liquids and transmits a proportional electrical signal.

SPECIFICATIONS

Output

• -4 to 20mA dc output, 10 to 50mA dc output, -0 to 10 V dc(3)

Accuracy

• STANDARD: + – 1.0% of flow rate for flow velocities greater than 1 m/s
• For flow velocities less than 1m/s, + -1.0% of the 1 m/s flow rate

Power

• Supply Voltage: 100, 120, 220(2), or 240 V as, + -1%

Materials

• PIPE, SURFACE, OR FLOWTUBE – The housing and cover are die-cast, low-copper aluminum alloy, finished with a high-build epoxy coating
• RACK MOUNT – The housing is steel with an aluminum alloy front panel. The steel housing is finished with light gray paint and the front panel is finished with dark gray vinyl paint or the equivalent.

Mounting

• Pipe
• Surface
• Flowtube
• Rack
