VS1520M full automatic screen printing line

VS1520M full automatic screen printing line

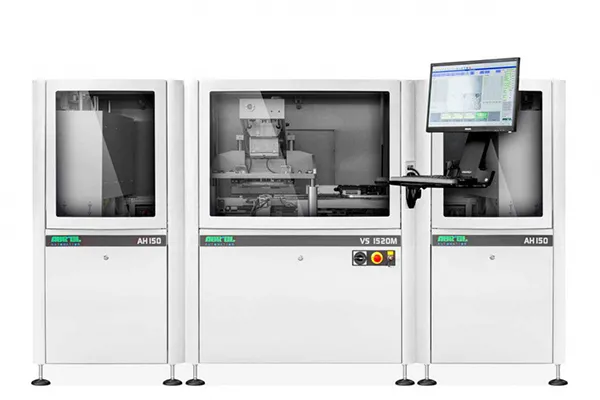

Aurel VS1520M is the full automatic screen printing version conceived with a modular approach that permits the customer to build up the line adding step-by-step additional modules according to the real production trend.

The basic configuration consists of a from cassette-to-cassette line with a high accuracy in-line screen printer platform VS with automatic vision system to grant the highest repeatability for multi-layer circuits and throughput (up to 6 sec + print time)

APPLICATIONS

Some applications for electronic and general industrial purposes are:

• Ceramic substrates
• Roll-To-Roll line
• Foil-To-Foil line
• SOFCs
• Parts on carriers

CONTROL SYSTEMS

• The machine is PC controlled and allows a great deal of flexibility on all functions
• Windows © Operating System
• Wide Touch screen monitor with user friendly interface
• Print and flood, alternating print and after print delay
• Programmable print parameters (printing stroke, pressure, print gap & down stop)
• Machine diagnostic
• Machine hood & lifting and locking safety switches
• Work recipes storing and data logging

HEAD

• The new very intelligent head on high precision slides represents the latest state-of-the-art design with motorized and programmable axes for fine teaching and adjustment of parameters.
• High sensitive squeegee for fine-line printing, low pressure, constant angle, no vibrations.
• DC motor driven head allows smooth movement and precise speed & stroke adjustments in both directions.
• Configurable head, single squeegee, double squeegee, squeegee and flood blade.
• Motorized and programmable screen Z axis for screen height and slow print gap function - very important for fine line printing.

VISION

Vision system by double digital TV camera for top & bottom vision movable over the complete substrate area for perfect fine-line alignment.

LOADER / UNLOADER

• Aurel AH150C handler from cassette-to-cassette operation, with automatic shuttle and separated chambers to change an empty magazine without stopping the cycle
• Aurel AH150S handler from stack-to-stack operation with vacuum section cups
• Loader with Double system: AH150C and AH150S only for the first print of blank ceramic substrates
