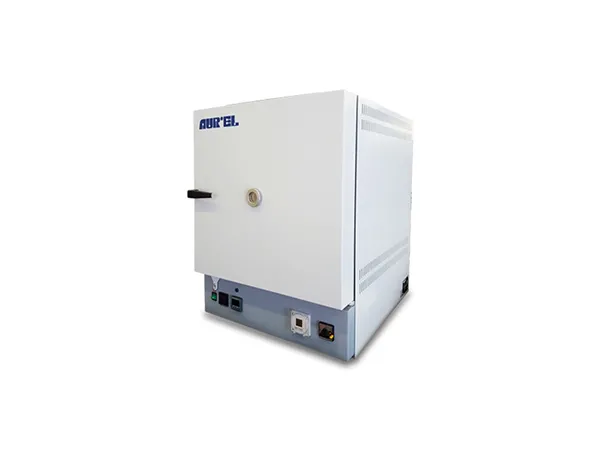

A1100-30 Static furnace for firing

A1100-30 Static furnace for firing

Highly accurate laboratory high temperature electric furnace with chamber made of thermal insulation fiber plates.

The products are designed for firing, hardening, loosening, normalising and other thermal processing up to temperature of 1100 °C.

To eliminate gasses or smoke that are released during thermal processing, ventilation hole and an exhaust system is installed.

The furnaces are an excellent fit for scientific laboratories, educational institutions, medicine and industry.

CONSTRUCTION

• Chamber made of fiber thermal insulation plates
• Vacuumized heating elements
• Outside casing in metal sheet RAL7035
• Ceramic bottom plates
• Door opening on the right with safety interlock switch
• Low electric power consumption
• Possibility to use a nitrogen gas
• Chimney

CONTROL

• Temperature measurement by thermocouple type "J"
• PID electronic regulator, double digital display
• Program of segments
• SSR control unit
• Buzzer
• Digital timer
• OTP (over temperature protection)
• PC connection and computer software
