BACKPLANE SOLUTION 92-175

BACKPLANE SOLUTION 92-175

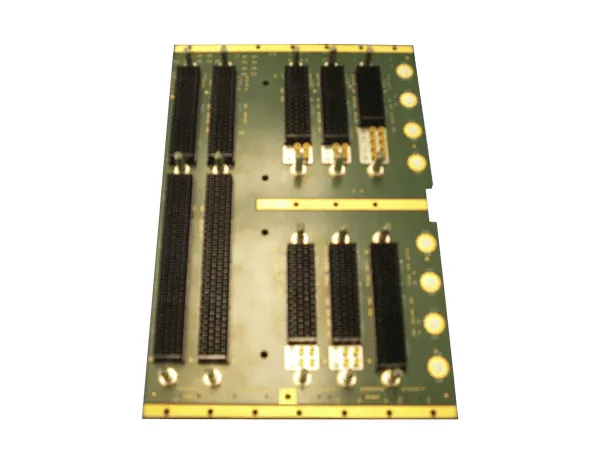

8-Slot hybrid 3U/6U OpenVPX VITA 67 development backplane includes (2) 6U OpenVPX and (6) 3U OpenVPX slots.

Specifications

Designed for ISR applications, the backplane is compliant to VITA 67.1 and 67.2 RF feedthrough on selected slots.

• Size: 7.000” x 10.311” x 0.212”

• Hybrid 3U/6U OpenVPX backplane

   (2) 6U OpenVPX slots

   (6) 3U OpenVPX slots

   VITA 67.1 and 67.2 RF feedthrough on selected slots

   VPX+ cabling to VPX RTM

connectors

   1.0” pitch

• Interconnect Topology:

   Application-specific data plane fabric topology

• I/O Connectivity:

   VITA 67.1 and VITA 67.2 RF feedthrough connectors support RF cabling to rear of backplane

   RTM connectors support rear transition modules

   Supports VPX+ cabling to VPX RTM connectors

• 0 to +30°C
