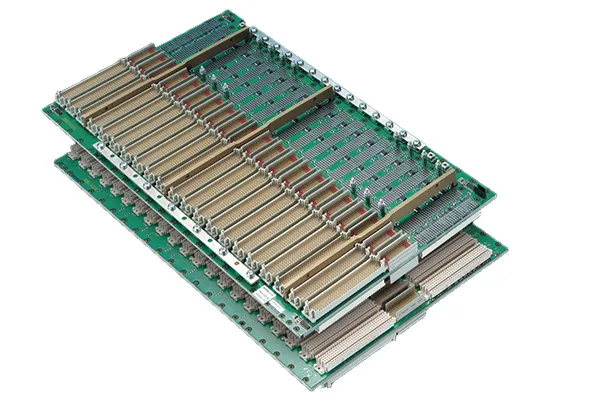

VME64X VITA 1.7 BACKPLANE

VME64X VITA 1.7 BACKPLANE

Atrenne VME64x VITA 1.7 backplanes comply with ANSI/VITA 5.1, include a 12-layer low noise striplinedesign with outside layers, which incorporates a chassis ground EMI shield and are available in customer configurations.

Specifications

• High-performance, low noise, very high power• Designed to meet ANSI/VITA 1.1• Operates at 320 mb/s per VITA 1.5 2eSST (simulation and measurement report available)• Complies with ANSI/VITA 38 “System Management for VME” standard• Optional P0/J0 connectors (shrouded)• Electronic Bus Grant (EBG)• High current internal ground planes• 8-32 thread high current power studs -easy to wire• Chassis Ground 6-32 Winchester Power Bug – easy to wire
