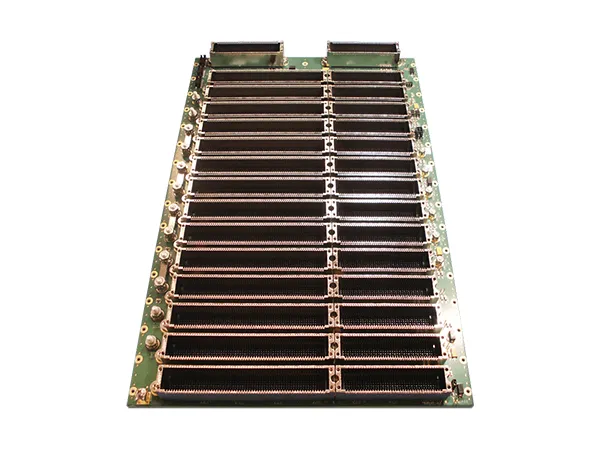

BACKPLANE SOLUTION 95-179

BACKPLANE SOLUTION 95-179

Hybrid 3U/6U OpenVPX ATR Backplane includes (2) 3U OpenVPX and (14) 6U OpenVPX slots.

Specifications

• Size: 15.961” x 10.311” x 0.212”

• Hybrid 3U/6U OpenVPX backplane

   (14) 6U OpenVPX slots

   (2) 3U OpenVPX slots

   VPX+ cabling to VPX RTM connectors

   1.0” pitch

• Interconnect Topology:

   All fabric signals pass through to rear transition connectors

• I/O Connectivity:

   RTM connectors support rear transition modules

   Supports VPX+ cabling to VPX RTM connectors

• 0 to +30°C
