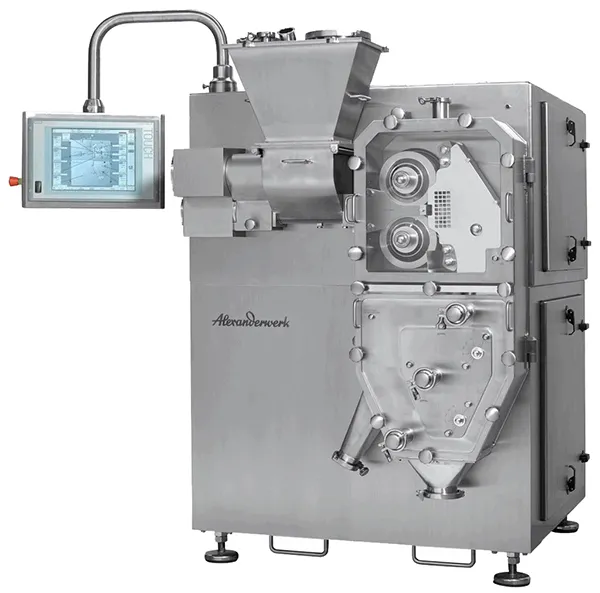

Pharmaceutical Roller Compaction WP 200

Pharmaceutical Roller Compaction WP 200

Roller compaction is a compaction process that employs the use of three key components:

The feeding system: carries the raw material from the mouth of the machine to the compacting unit
The compaction unit: uses two counter-rotating rolls to compact the material
The size reduction unit: mills the compacted material to the desired particle size

Altogether, these components allow for the production of more precise and accurate pharmaceutical products.

Machine	WP 200 Pharma
Roller Diameter [mm / inch]	200 / 7.874
Roller Width [mm / inch]	75 / 2.953
Throughput, Continuous Operation [kg/h] (Lactose)	up to 400
Maximum Press Force [kN/cm]	20
Maximum Roller Gap [mm]	5
Maximum Roller Speed [rpm]	38
Approx. Weight incl. Control System [kg / lbs.]	2,050 / 4,519.48
Approx. Dimensions [m] (w x d x h)	1.7 x 1.3 x 1.9
Approx. Dimensions [inch] (w x d x h)	66.9 x 51.2 x 74.8

Technical Specs
