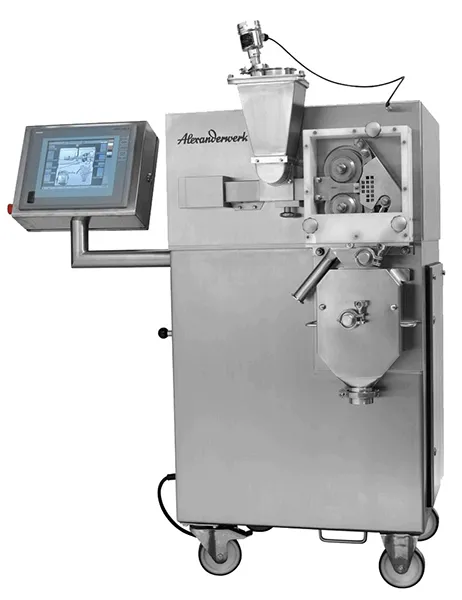

Pharmaceutical Roller Compaction WP 120
Roller compaction is a compaction process that employs the use of three key components:
Altogether, these components allow for the production of more precise and accurate pharmaceutical products.
Machine
WP 120 Pharma
Roller Diameter [mm / inch]
120 / 4.724
Roller Width [mm / inch]
25 / 0.984
40 / 1.575
Throughput, Continuous Operation [kg/h] (Lactose)
up to 40
Maximum Press Force [kN/cm]
20
Maximum Roller Gap [mm]
4
Maximum Roller Speed [rpm]
15
Approx. Weight incl. Control System [kg / lbs.]
800 / 1,763.7
Approx. Dimensions [m] (w x d x h)
1.5 x 0.9 x 1.8
Approx. Dimensions [inch] (w x d x h)
59.1 x 35.4 x 70.9
