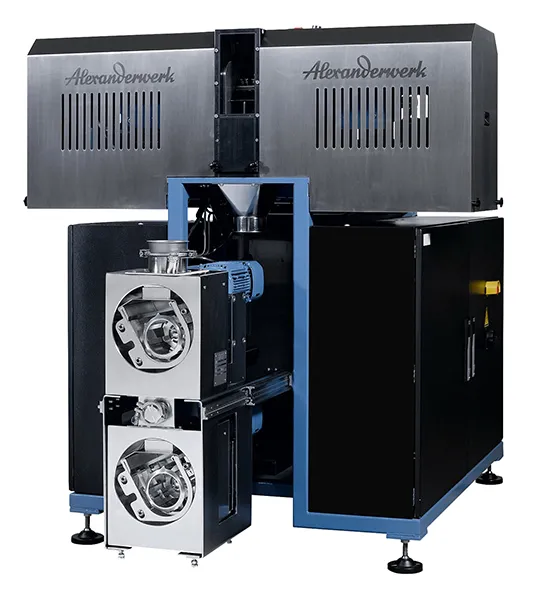

Industrial _ Chemical Roller Compaction PP 150 C
The PP (Power Press) series from Alexanderwerk is perfectly designed to meet all requirements and standards of the compaction process. The machines come standard with the patented Combi-Vent-Feeder®. Utilizing our unique vertical roller orientation and the vacuum de-aeration capability in the feed screw housing more raw material can be processed more consistently in a given period, which leads to a more efficient and profitable operation.
Through the double-sided bearing design of the rollers and robust frame construction, a high maximum press force can be achieved. Previously determined process parameters can easily be scaled up to larger production machines. In addition, the flexibility to deliver various granule sizes is achievable with our PP series. To ensure a compact design, all process control component systems (including hydraulics, vacuum pump, cooling water, and air distribution system) are integrated into the control system of the machine.
PP 150 C: Our PP 150 C is designed to meet the highest standards and requirements for the chemical roller compaction. It provides a roller diameter of 150 mm and a width of 75/150/300 mm; a throughput of up to 400 kg/hr; and maximum pressure force of 30 kN/cm.
Machine
PP 150 C
Roller Diameter (mm)
150
Roller Width (mm)
75 / 150 / 300
Throughput, Continuous Operation (kg/h)
up to 400 (Lactose)
Maximum Press. Force (kN/cm)
up to 30
Maximum Roller Gap (mm)
5
Maximum Roller Speed [rpm]
30
Approx. Weight (kg)
1,500
Dimensions (mm)
1,536 x 1,753 x 2,090
