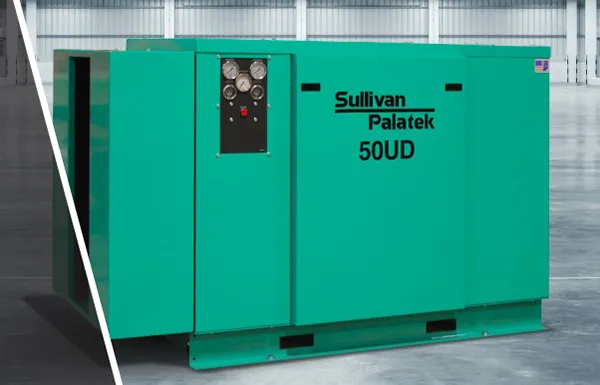

UD-SERIES

UD-SERIES

Features

• T1 Microprocessor - Program daily schedule to suit plant requirements
• Electric Motor - 460/575/3/60 standard (208/230/3/60 and 380/415/50 optional on most models)
• Motor Starter - Full voltage magnetic starter with 120 volt controls, NEMA 1, NEMA 4, Wye Delta, VFD - Optional
• Protective Devices - Class 20 Solid State overload relay, anti reverse, high temperature and high pressure shutdown switchs
• Lube Fill & Level Elbow - One piece fluid fill elbow and level indication sight glass
• Separator Tank - ASME coded 200PSIG tank, relief valve, minimum pressure/ check valve
• Cooling System - Cooling system with dedicated fan motor, large side by side lube cooler and aftercooler
• Air Intake Filter - Heavy duty dry type with easily replaceable elements
• Inlet/check valve - One piece housing for dependable performance and complete modulation
• Coupling & Drive - Compressor is flange mounted to motor C-face for positive alignment and direct driven
• Controls - 0-100% modulation, solenoid controlled for smooth lowest possible no load power
