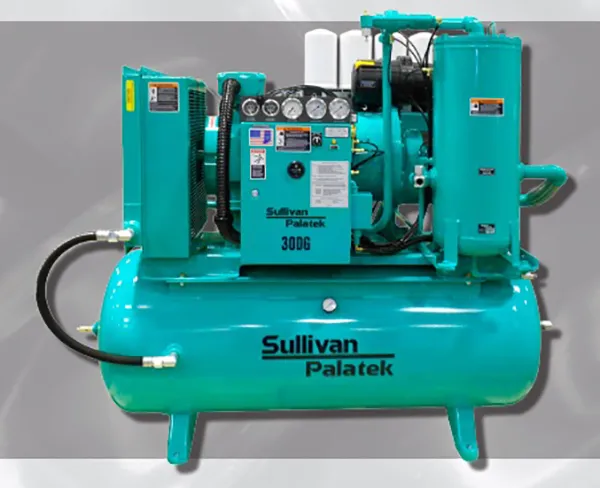

INDUSTRIAL AIR COMPRESSOR
INDUSTRIAL AIR COMPRESSOR
ELECTRIC MOTOR:
Nema T-Frame, C-Face, double shaft, open drip proof squirrel cage induction type. » Direct coupling to motor for positive alignment.
MOTOR STARTER: » Full voltage magnetic starter with 120 volt controls, Nema 1 enclosure, circuit breaker, transformer and three phase over load protector.
AIR INTAKE FILTER: » Multi-stage dry type with replaceable element.
CONTROLS: » Full modulation, electronically controlled for smooth operation and lowest possible no load power. Auto dual control, timed stop or constant run.
INSTRUMENTATION: » Line pressure gauge, fluid reservoir gauge, hour meter, discharge temperature gauge, oil filter and separator element differential gauges. » Microprocessor control available.
PROTECTIVE DEVICES: » Class 20 overload relay, high temperature and overpressure shut down.
COOLING SYSTEM: » Air cooled with air cooler/aftercooler and factory filled with Palasyn 45 synthetic lubricoolant. Equipped with micro fiber full flow oil filter.
AIR DRYER: » Desiccant air dryer, water separator and coalescing filter for moisture removal, spin on replaceable cartridges.
FEATURES
- Provides low dew points, and drops relative humidity below 10% consistently
- Dryer housings manufactured from solid aluminum
- Modular design
- Cartridge style regeneration orifices
- Dual outlet and inlet ports
- Dual inlet / auxiliary ports
- Each tower housing has a single piston spool
- Water trap & coalescing filter, standard
- Unloaded shutdown, standard feature
BENEFITS
- Waterborne ready!
- Does not require buying an entirely new unit to increase your shop’s drying capacity
- Stronger construction; eliminates casting porosity
- Eliminates the need for manifold system
- Provides the ability to customize the performance of your dryer
- 1” NPT ports provide for easier installation options and reduces pressure drop through the dryer
- Allows for filtered air without drying the air for other uses such as breathing air
- Less parts, more reliable, and easy to service
