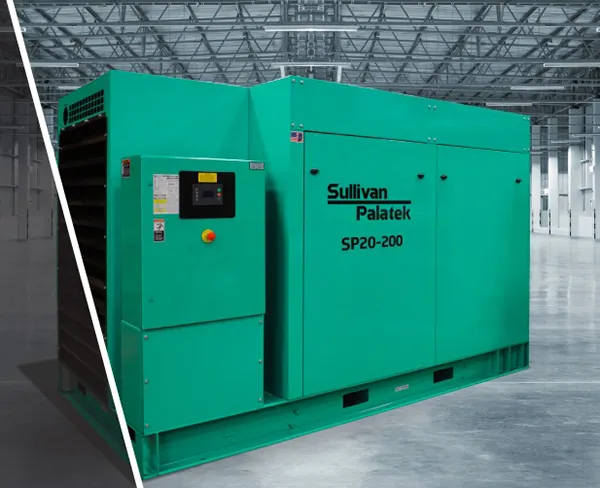

SP20 SERIES

SP20 SERIES

Features

• Air End - SP series manufactured by SullivanPalatek
• Electric Motor - 460/575/3/60 standard, 50 cycle 208/380/415, (208/230/3/60 optional on 125HP models)
• Motor Starter - 460 volt, MFV with 115 volt control, NEMA 1. Optional: NEMA 4, Wye Delta, Solid State available
• VFD Option - 460 volt, NEMA 1 Standard Optional: NEMA 12, NEMA 4, NEMA 3R
• Lube Fill & Level - O-Ring fluid fill port and bulls eye style level indication sight glass
• Separator Tank - ASME coded 200 psi tank, relief valve, minimum pressure/ check valve. Optional 300 psi available for 250 psi working pressure applications.
• Cooling System - Large side by side lube and air cooled aftercooler.
• Air Intake Filter - Oversize dry type with easily replaceable elements
• Inlet/check valve - One piece housing for dependable performance. Modulation – 0 to 100%.
• Coupling & Drive - Compressor is flange mounted to motor C-face for positive alignment
• Controls - S-P microprocessor controller w/ sequencer, lead lag and remote monitoring for up to 8 machines. Optional: Deluxe gauge panel F
