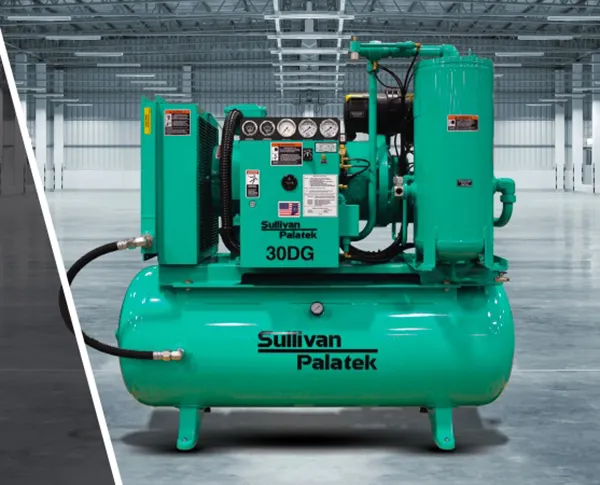

DG-SERIES
DG-SERIES
COMPRESSOR UNIT: » Fluid flooded rotary screw, continuous duty, industrial air compressor. » Direct coupled to motor for positive alignment.
ELECTRIC MOTOR: » Nema T-frame, C-face double shaft, open drip proof squirrel cage induction type. » 200/230/460/575/3/60 - 380/3/50
MOTOR STARTER: » Full voltage magnetic starter with 115 controls, Nema 1 enclosure, circuit breaker, transformer and three-phase overload protector. » Nema 4, Wye Delta and VFD optional
COUPLING & DRIVE: » Compressor is flange mounted to motor C-face for positive alignment and gear driven with low maintenance coupling.
AIR INTAKE FILTER: » Corrosion resistant housing » Oversize multi-stage dry type with replaceable element.
COOLING SYSTEM: » Air-cooled with air oil aftercooler and factory filled with Palasyn 45 synthetic lubricoolant.
CONTROLS: » Auto dual control, full modulation, timed stop or constant run standard. » Analog controlled for smooth operation and lowest possible no load power. » Optional microprocessor.
INSTRUMENTATION: » Line pressure gauge, fluid reservoir sightglass, hour meter, discharge temperature gauge, fluid filter and separator element differential gauges.
PROTECTIVE DEVICES: » Class 20 overload relay, high temperature and overpressure shutdown.
LUBRICATION: » Factory filled with Palasyn 45. » Equipped with microfiber full flow, spin on oil filter.
