Aanderaa Wind Speed Sensor

• Low power

• Low threshold speed

• High maximum speed

• User friendly

• SR10 output format

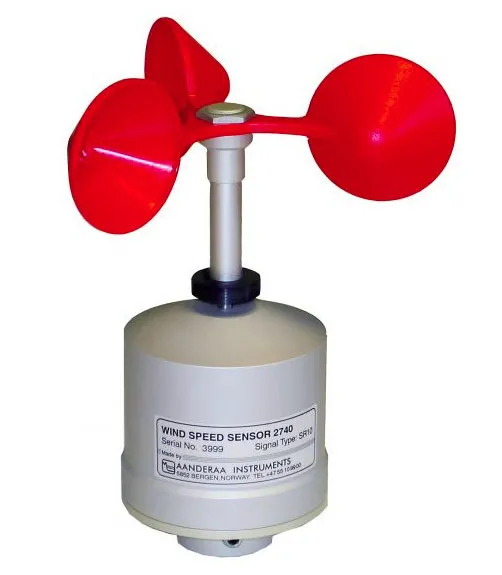

The Wind Speed Sensor 2740 consists of a three cup rotor on top of an aluminium housing. The sensor can be fi tted directly onto the Sensor Cross Arms 3415/3435 of an Aanderaa automatic weather station or used separately if a connecting cable is used. The sensor foot will fi t onto a 25 mm vertical tube.

The rotor bearing assembly consist of two stainless steel ball bearings in an assembly protected by a surrounding skirt. The lower end of the skirt is furnished with a magnet, and the magnet's rotation is

sensed by a magneto inductive switch located inside the housing.

A micro controller reads the pulses from the magneto inductive switch sensing the rotor's rotation and uses the pulse count to calculate the wind speed. The sensor has two output signals; average wind speed and maximum wind speed (gust) during the sampling interval.
