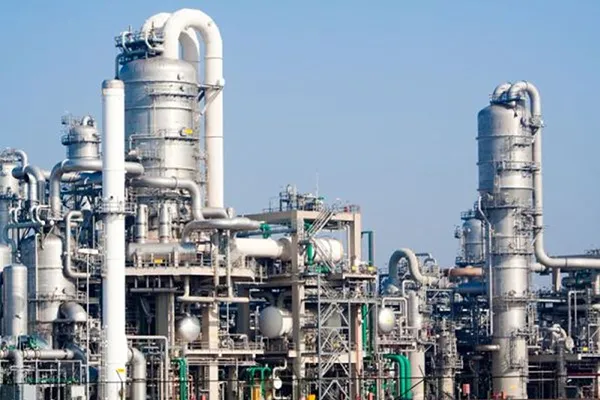

Process Plant Simulation

Our plant process simulation modeling utilizes the 3KEYMASTER™ real-time simulation environment developed by WSC. This tool has been extended beyond the power applications to process applications simulating various chemical processes. Shared between the Process and Power industry modeling tools are the logic and control systems, relay logic, and electrical systems modeling. The 3KEYMASTER™ system includes a full set of tools and libraries accessed through an ergonomically designed graphical user interface that allows for instantaneous dynamic visualization of the process being simulated as the system is being configured.   WSC’s fluid systems modeling tools, chemical kinetics, DCS and PLC solutions, and component modeling library can be used to model process plants.  Plant-specific custom models can also be ported into the 3KEYMASTER™ platform and interfaced with traditional WSC models. These type models can retain their proprietary nature but can be embedded seamlessly in the 3KEYMASTER™ environment.

Examples of process unit simulations experience:

• Flue gas desulfurization (FGD) process simulation
• Desalination plant simulator
• Gasifier Reactor simulation
• Distillation Colum simulation
• Acid Gas Removal process unit simulation
• Absorbers (e.g. H2S, CO2, Mercury) units
• Nitrogen Plant process: Compression and Liquid storage simulation
• Particulate Control Device (PCD) simulation
• Continuous fine ash depressurization system (CFAD) simulation
• Scrubbers simulation (e.g. Water gas shift, COS hydrolysis, Ammonia scrubber)
• Compressors unit simulation (e.g. Air, N2, O2, etc.)
• Sulfuric Acid process unit simulation
• Quench and Scrubber Colum simulation
• Ammonia Stripper Column and Ammonia Purifier Column simulation
