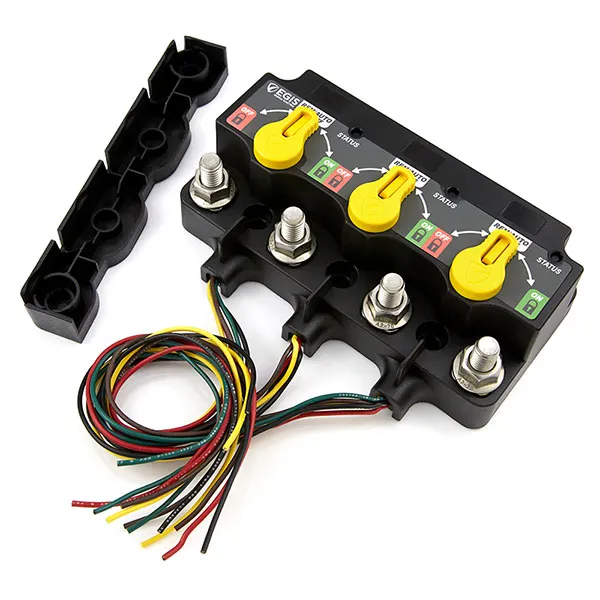

Egis Mobile Electric 8730-1111B XD Series Triple

XD Series Flex Relays are available in single, double, and triple variations. Each position in the flexible relay can be used as a normal 500A relay battery disconnect, an automatic charging relay, or even a low voltage disconnect. Available with or without manual override knobs.

• Egis Mobile Electric 8730-1111B XD Series Triple Flex Relay
• Category:
• Manufacturer:
• Bi-Stable Automatic Charging Relay at up to 500A Continuous Current
• Available with intuitive front facing manual override knob with ability to lock device On or Off for servicing
• Fully adjustable Open and Close voltage set points support all battery types
• Supports single and multiple engine installations with Dual Start/Engine isolation inputs
• Remote On/Off input allows combining batteries during hard starts events

Features:

• Eliminate dead start batteries by sharing the charging on either of two batteries and isolating batteries when no charge sources are present
• Adjustable On and Off Voltage Settings: Allows sharing start battery energy for auxiliary battery while ensuring engine starting ability
• Dual Engine Isolation: Selectable input options for protecting sensitive electronics or isolating multiple charging sources to optimize overall system performance
• LED Status Display: Easy-to-see facing LED indicator provides visual device status

Primary Specifications:

• Ingress Protection: Sealed to IP67/ IP6K9, high temperature rated materials allow mounting anywhere
• Open Voltage Range: 10 secs from 11.7-12.4VDC to 120 secs from 12.9-13.6VDC
• Standby Current: 1.3mA
• Max. Cranking Current: Up to 1,500A

Termination:

• Mounting Holes: 1/4" / M6 hardware
• Terminal Stud Size: M10 x 1.5 stainless steel material

Includes:

• 40-circuit label sheet making circuit and relay identification more convenient
• Protective cover, protects terminal studs and cables from inadvertent shorts
• Standard 4 year warranty
