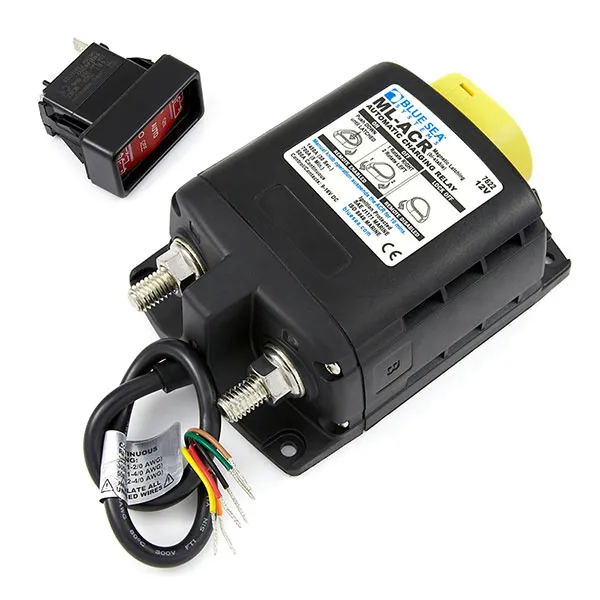

Blue Sea Systems 7622 Automatic Charging Relay

Blue Sea Systems 7622 Automatic Charging Relay
Category: Battery Chargers
Manufacturer: Blue Sea Systems
Operating Temperature: 14°F (-10°C) to 140°F (60°C)
Remote control Contura switch (Blue Sea No. 2146) included
Manual control switch provides an added level of safety allowing control with or without power, and offering LOCK OFF capability for servicing
500A magnetic latching (bi-stable) relay automatically combines batteries during charging and isolates batteries when discharging and when starting engine
Automatically manages the charging of two large battery banks
Allows paralleling of battery banks for emergency starting
500 Ampere continuous rating to support high-output alternators
Magnetic Latch (ML) - ACR draws very low current (<40mA to monitor terminal voltage) in the ON or OFF states, and draws moderate current for very short time when changing state
Dual sensing - senses charge on both battery banks
Start Isolation (SI) - can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics
Engine Isolation (EI) - can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output
LED output to remotely indicate when batteries are combined, isolated, in voltage lockout, or in Start or Engine isolation
3/8 -16 tin-plated copper studs for maximum conductivity and corrosion resistance
7/8 (22mm) stud length accepts multiple cable terminals
Amperage rating of 500A Continuous or 700A for up to 5 minutes
Amperage Operating Current of 13mA
<7.0A Operating Current when changing state
Cranking Rating for 10 sec @ 2500A, 1 min @ 1100A
4/0 Ga. Cable Size to Meet Ratings
300A @ 12VDC Live Current Switching
100,000 Switching Cycles
Relay Contact Position:
- Combine 30 sec: 13.5V
- Combine 90 sec: 13.0V
- Open 10 sec: 12.35V
- Open 30 sec: 12.75V
- Open High: 16.2V
