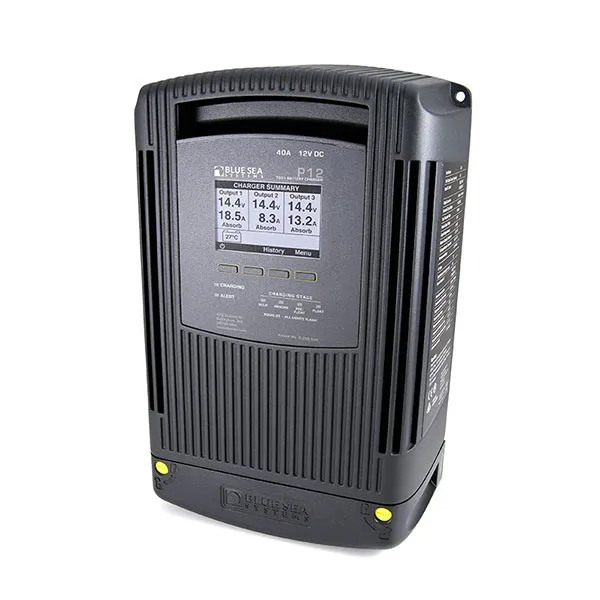

Blue Sea Systems 7532 P12 Battery Charger

Blue Sea Systems 7532 P12 Battery Charger
Category: Battery Chargers
Manufacturer: Blue Sea Systems
Rugged finned aluminum case dissipates heat to help keep the battery charger electronics cool
Universal line voltage 90-265VAC, 45-65 Hz for use anywhere, and is compatible with low voltage power sources
AC over and under voltage shut down and automatic restart
Operating Temperature: -4°F (-20°C) to 158°F (70°C)
Large bright full graphic control screen with user interface
Plain-language text in English, French, Italian, German and Spanish
Charge Coordination integrates with Blue Sea Systems Automatic Charging Relays to separate the battery banks while the P12 is operational
Intuitive diagnostic screens provide a broad range of easily understood fault communications and operating history
Power factor corrected for efficient charging
Output for three 12 Volt battery banks
Charge profiles for Flooded, Gel, Thin Plate Pure Lead (TPPL), and Absorbed Glass Mat (AGM)
A user configurable charge profile is available for other battery types
PreFloat stage prevents over charging by individually moving each battery out of the Absorption charging stage, so batteries near full charge do not receive the high constant voltages necessary for other batteries still in the Absorption stage
Charge Coordination integrates with up to two Blue Sea Systems Automatic Charging Relays (ACR) to separate the battery banks while the P12 is operational
Over and under temperature protection for batteries
DC over voltage & reverse polarity protection
Surge and short circuit protection
Input AC Current 7.5A @ 100VAC or 3.75A @ 200VAC
16VDC Maximum Voltage Output
0.05V Output Voltage Accuracy
13.5VDC Typical Float Voltage
