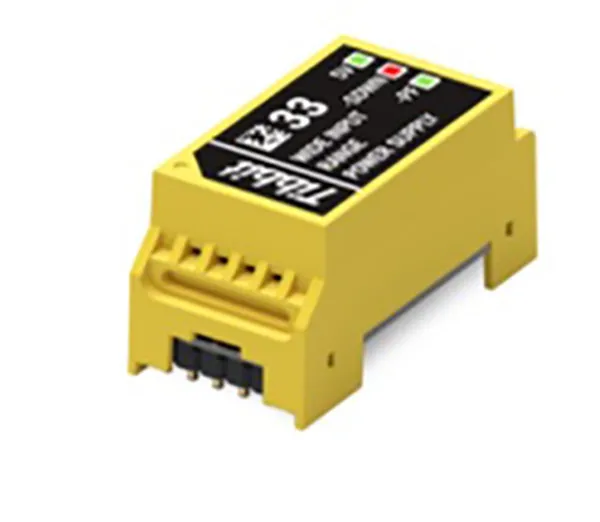

Tibbit#33- Wide input range power supply

Tibbit #33 is ideal for powering Tibbo Project System (TPS) devices from the popular 12V, 24V, and 48V DC input voltages. The Tibbit is capable of supplying up to 1.5A¹ of current from 8–60V input voltage and in the entire industrial temperature range from –40°C to +85°C. The module can handle voltage dips down to 6V and spikes up to 100V, which makes it suitable for battery-powered and automotive applications. Tibbit #33 also features transient input voltage, reverse input voltage, reverse output current, output current (short circuit), and temperature (overheating) protection.

Multiple Tibbits #33 can be used to increase the available current, for power redundancy, or for load sharing².

Combine this Tibbit with #18 (it has a power jack and two terminal blocks), #19 (DB9M), #20 (nine terminal blocks), or #21 (four terminal blocks).

1. To ensure your system's reliability and longevity, derate this value for input voltages above 48V, especially in high ambient temperature conditions. While driving the Tibbit at the specified maximum current will not lead to an immediate failure, it may reduce the Tibbit's life. We recommend a maximum current of 1.3A for sustained operation at input voltages above 48V. When in need of higher currents in harsh conditions, consider using more than one power Tibbit for load sharing.
2. Be aware that when you use multiple power Tibbits, their grounds (IO4) are interconnected (tied together) through the TPS.

Please check the detailed information from the website:

• #33, M1T: Wide Input Range Power Supply Tibbo Docs
