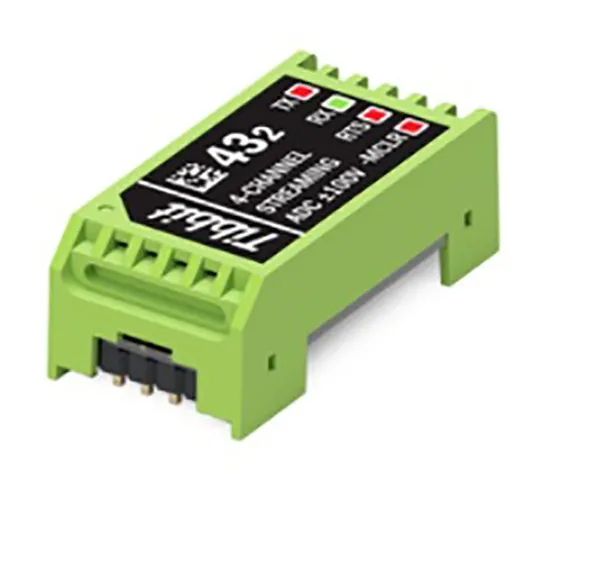

Tibbit #43-2 Four-Channel Streaming ADC With a ±200V Range

The new Tibbit #43-2 is a wide-input-voltage range version of the #43-1 ADC Tibbit that we introduced back in March.

Nominally rated at ±100V in the single-ended mode and ±200V in the differential mode — but with absolute maximum ratings of ±120V and ±210V, respectively — Tibbit #43-2 can even be used to acquire AC signals, for example, in phase detection and power quality factor monitoring systems.

Other possible applications include battery bank management, solar panel voltage monitoring and logging, as well as industrial instrumentation. In essence, Tibbit #43-2 adds the capabilities of a multichannel wide-input-range voltmeter to your TPS devices.

Like its sibling, the new #43-2 device offers four single-ended or two differential channels and incorporates a microcontroller. The latter enhances the linearity and precision of analog-to-digital conversions and also enables low-jitter signal sampling and data streaming through the serial port.

Please check the detailed information from the website:

• #43-2, M1S: Four-Channel Streaming ADC ±100V - Tibbo Docs
