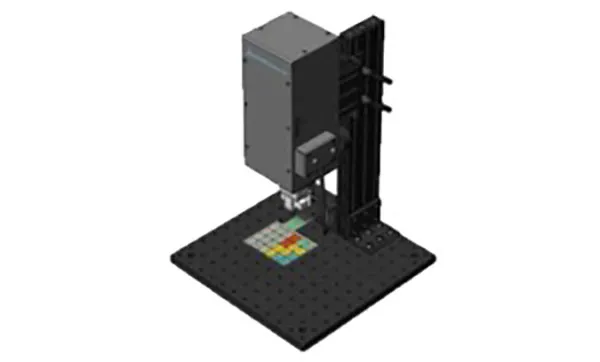

925 Force Distance Tester

925 Force Distance Tester

• Accurate, fast, repeatable testing of distance and force parameters
• Typically reduces test times by 50% or more
• Provides in-depth test data to fulfill customer requirements
• Up to 5,000 data points per test
• Displays test data in tabular or graphic formats
• Versatile test head can be mounted to meet user’s needs
• Eliminates deflection errors through automatic deflection compensation

ACCURATE, FAST, REPEATABLE TESTING OF FORCE AND DISTANCE PARAMETERS.

The Model 925 is a low cost force-distance tester. It communicates with a Windows™-based PC to send data into an Excel format. The data can then be viewed and analyzed in tabular or graphical format. Once in the Excel format, the data can be transferred or used in any of the multiple Excel operations. This line of displacement-force test stations has a positional resolution of 0.0025 mm (0.0001 inches). Your test department will appreciate the high accuracy readings provided over the complete travel range.

Interchangeable force sensors with ranges up to 9 kg (20 lb.) are available. The Model 925 also permits the user to change the probe tip. The test station performs a calibration on the complete test fixture. This calibration removes the deflection and compression effects that can reduce reading accuracy. The calibration is performed over the range of forces specified for the specifically configured setup.

The Model 925 is invaluable as a test tool for qualifying first article product, audit testing, engineering investigation and life study tests.

The 925 is provided with a user friendly application software that runs on Microsoft WindowsT-based PCs. The output data is all in Microsoft ExcelT format files that can be opened by other applications supporting this format and allows easy import of data for statistical process control (SPC).
