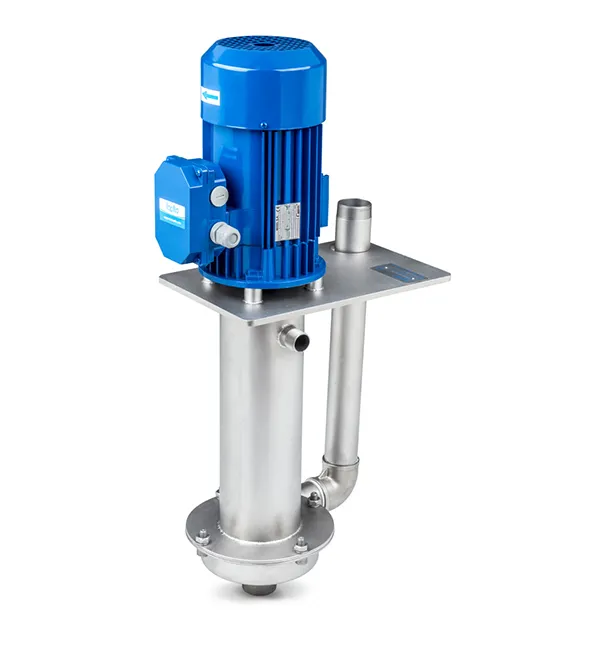

CTV 40-13.5 is a 1 1/2" vertical pump in stainless steel AISI 316 with 2.2 kW motor, capacity of 20 m3/h and max head of 31 m.
The performance curves are based on water at 20°C. Other circumstances might change the performance. Read about how do you interpret the performance curves.
Dimensions
mm
Width A
267
Depth D*
253
Height K
425
Height J
8
Height I
265
Technical info
Unit
Model/Value
Motor
3-phase, 2-pole, 380-420 VAC 2 900 rpm, 50 Hz, IP 55
Motor power
kW
2,2
Max capacity
m3/h
31
Max head
m
11
Outlet dimension(Male BSP)
''
11/2
Max temp
°C
100°C
