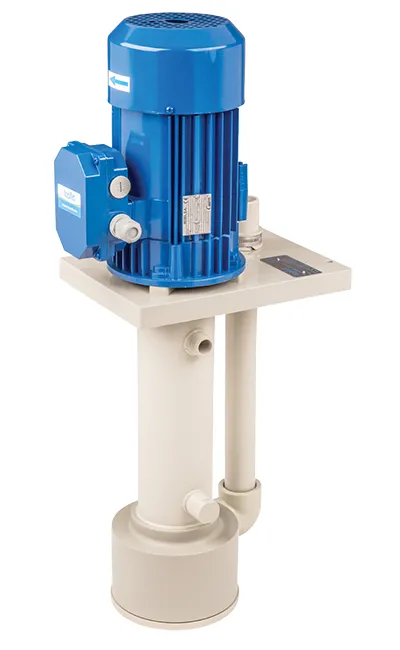

CTV 32-8.5 is a 1 1/4" vertical pump in PP or PVDF with 1.1 kW motor, capacity of 19.8 m3/h and max head of 10 m.
Performance curveThe performance curves are based on water at 20°C. Other circumstances might change the performance.Read about how do you interpret the performance curves.
Data
Dimensions
mm
Width A
285
Depth D*
214
Height K
419
Height J
25
Height I
267
Technical info
Unit
Model/Value
Motor
3-phase, 2-pole, 380-420 VAC 2 900 rpm, 50 Hz, IP 55
Motor power
kW
1,1
Max capacity
m3/h
19,8
Max head
m
10
Outlet dimension(Male BSP)
''
11/4
Max temp
°C
PP pumps: 70°C PVDF pumps: 100°C
