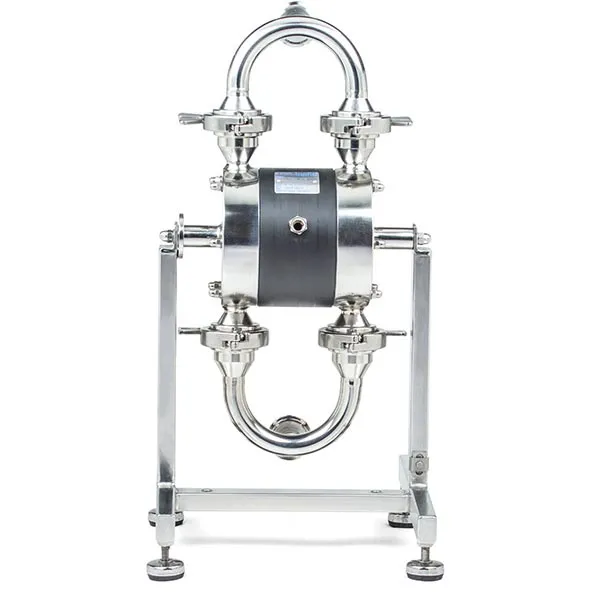

EHEDG aseptic pump TX94

EHEDG aseptic pump TX94

Tapflo TX94 Aseptic series pumps are designed for service in pharmaceutic-, biotech- and food industries where a clean process is the key.Tapflo Aseptic series is EHEDG certified, has FDA approved materials and conform to the ATEX directive 94/9/EG.

Technical info



 Max flow

 l/min (US gpm)

 94 (24.8)

 Max pressure

 ml (cu in)

 8 (116)

 Max air pressure

 bar (psi)

 8 (116)

 Max suction lift dry

 m (Ft)


 *Max size of solids

 mm (in)

 6 (0.23)

 Min temp

 °C (°F)

 -20 (-4)

 Max temp**

 °C (°F)

 110 (230)


 kg (lb)

 15 (33)


 Triclamp DN40, SMS,DIN and RJT threads,DIN 11864 clampATEX details Group II, cat 2, T4
