Double Sided Teflon PCB
Double Sided Teflon PCB

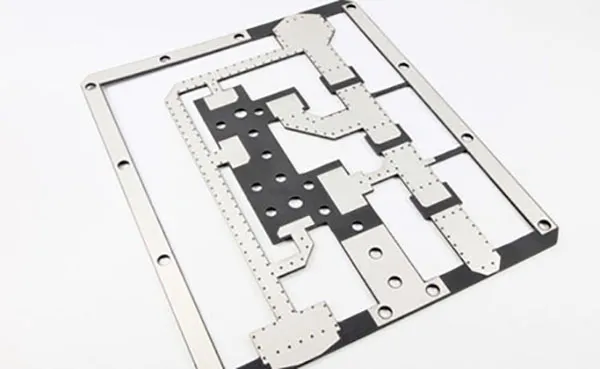

With a combination of specialized processes and equipment, Standard Printed Circuit Boards custom manufactured the double-sided glass-reinforced PTFE printed circuit board (PCB) displayed above. This PCB is used for controlled impedance within a microwave application.
Utilizing advanced photolithography and chemical etching, trace widths are controlled to a +/- .001″. CNC machines are used to bring the part to its final shape and size.
This board was manufactured and inspected to the specifications of IPC-6018 Microwave End Product Board Inspection and Test standards. Standard Printed Circuit Boards manufactured a total of 100 double-sided PTFE PCBs for this customer, fulfilling their expectations for both design and quality. All finished units were delivered to our customer’s facility in the Northeastern US.
Double Sided Teflon PCB Highlights
Product Description
This Double Sided Teflon PCB manufactured for controlled Impedance within a Microwave Application
Capabilities Applied/Processes
Select proper laminate
CNC Drilling
Photolithography
Etching
- Precisely Controls Line Widths
Copper Plating
Final Fabrication
- CNC Routing brings part to final shape and size.
Packaging
- Vacuum Sealed for extended shelf life.
Equipment Used
CNC Driller
CNC Router
Etcher
Exposure Unit
Overall Part Dimensions
Length: 5"
Thickness: .005"
Width: 2.5"
Tightest Tolerances
±.0003" For Copper Plating
±.001" Controlled Line Width
Material Used
Glass Reinforced PTFE
Material Finish
.0028" Thick Copper Plating
In process testing performed
Line Width Verification
Industry for Use
Telecommunications
Quantity Manufactured
100
Delivery Location
Northeastern US
Standards Met
IPC-6018 Microwave End Product Board Inspection and Test
IPC-A-600 Acceptability of Printed Boards
Product Name
Double Sided Teflon PCB (Printed Circuit Board)
