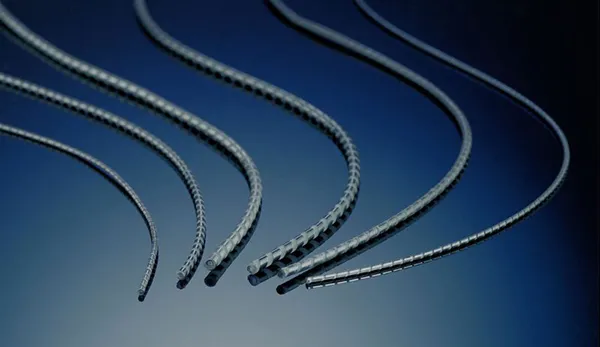

Flexi-Shield gasket
Spira’s Flexi-Shield gasket offers the best of both worlds. This gasket combines the EMI shielding performance of our other spiral gaskets with the rain/wind/dust sealing of an elastomer. A special process wraps our highly conductive spiral around a soft silicone tube. This results in gaskets that are very easy to handle, are rugged enough to be used in demanding sliding applications, provide as little as two pounds of closure force per inch, and offer moderate to high shielding, depending on the materials chosen. The low force series is especially well-suited to shielding the front/rear panels of VME/VXI and similar enclosures.
Whether you need moderate to high shielding levels, rain/wind/dust sealing, or simply want the ease of handling that the inner tube provides, Spira’s Flexi-Shield comes through for you. All the benefits for one low cost!
SHIELDING QUALITY
We offer stainless steel for moderate shielding quality, and optional tin plating for higher shielding levels. All shielding quality results are based on tests against tin plated joint surfaces. The shielding quality may vary depending on your specific application.
Stainless Steel (All Forces): 100 dB at 1 GHzLow Force Tin Plated Gaskets: 120 dB at 1 GHzModerate and Standard Force Tin Plated Gaskets: 130 dB at 1 GHz
LOW CLOSURE FORCE
The low force series is ideal for applications with very little closure force (approximately two pounds per linear inch compression). The gasket resists compression set, is very easy to handle and will provide a rain/wind/dust seal.
VME/VXI AND SIMILAR FRONT/REAR PANELS
The low force gasket is the best choice for shielding front and back panels of VME/VXI and similar enclosures. The gaskets are easy to insert and testing shows no visible wear after 1,000 insertions! Flexi-Shield gaskets are manufactured from a continuous piece of metal, so they have no small pieces to break off and short out equipment. For specific design information, refer to our VME/VXI Shielding Design Guide.
SLIDING APPLICATIONS
All versions of Flexi-Shield are ideally suited for sliding applications. Specify moderate or standard force Flexi-Shield where extreme durability is required.
MATERIALS
Spiral: Stainless steel (tin plating optional).Inner Tubing: 60 durometer silicone.
ENVIRONMENTAL SEALING
Our testing shows that all sizes and all resiliencies offer a rain/wind/dust seal.
COMPRESSION FORCE
Flexi-Shield gaskets come in three different resiliencies (as shown below). Optimal compression of the gasket is 25% of the diameter of the spiral (except in the case of VME/VXI designs. Since the force to compress the gasket is a function of the cube of the thickness of the stainless steel ribbon, the compression forces shown are approximate.
Standard Force: ~30 pounds per linear inch compression.Moderate Force: ~10 pounds per linear inch compression.Low Force: ~2 pounds per linear inch compression.
MOUNTING
This gasket is groove mounted.
