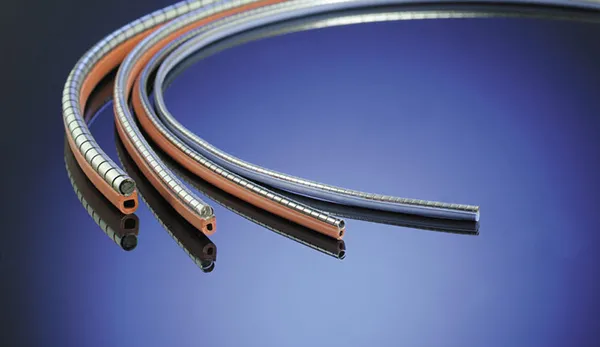

D Multi Seal Gasket
D Multi Seal Gasket
“D” Multi-Seal is a groove-mounted gasket with a bulbous silicone elastomer for an excellent environmental seal. It comes standard with the Spira-Shield for superior shielding quality or can be ordered with any other spiral material.
This combination EMI and environmental gasket is ideal for applications that need excellent sealing and have somewhat limited space or want to utilize a groove-mount solution. For surface mount applications, see the Basic Multi-Seal gasket.
MATERIAL
Spiral: Spira-Shield, Tin/lead plated beryllium copper.
Elastomer option: Solid silicone rubber, 40 durometer on -0421, -0632; 60 durometer all other sizes. (See Options for RoHS compliance or other material choices).
SHIELDING QUALITY
This gasket offers shielding quality from 86 dB to 165 dB. The shielding quality may vary depending on your specific application.
COMPRESSION FORCE
“D” Multi-Seal gaskets comes in two different resiliencies (as shown below). Optimal compression of the gasket is 25% of the diameter of the spiral. Since the force to compress the gasket is a function of the cube of the thickness of the beryllium copper ribbon, the compression forces shown are approximate.
Standard Force: ~33 pounds per linear inch compression.
Moderate Force: ~13 pounds per linear inch compression.
MOUNTING
This gasket is groove mounted.
SPIRAL MATERIAL
“D” Multi-Seal comes standard with a tin/lead plated Spira-Shield gasket. Other spiral materials or plating may be specified. Please contact us for more information.
CORD INSERT
Standard Force gaskets come without a cord and we recommend to omit the cord in all gaskets by specifying “NC” (no cord). Cord is available if needed in PVC, solid fluorosilicone, solid silicone and thermal plastic rubber depending on the size and should be ordered to match the elastomer chosen. Please contact us for details.
NC: No Cord (Example: DMS-1263 NC)
SPECIAL ELASTOMER
The standard elastomer is solid silicone. A special elastomer can be specified as shown below (available in certain sizes only). Note that these elastomers (as with most special options) are non-stock items and will include additional charges.
/E: EPDM* (Example: DMS-1263 /E)
/F: Fluorosilicone*
/O: Space Qualified Silicone* (non-outgassing)
